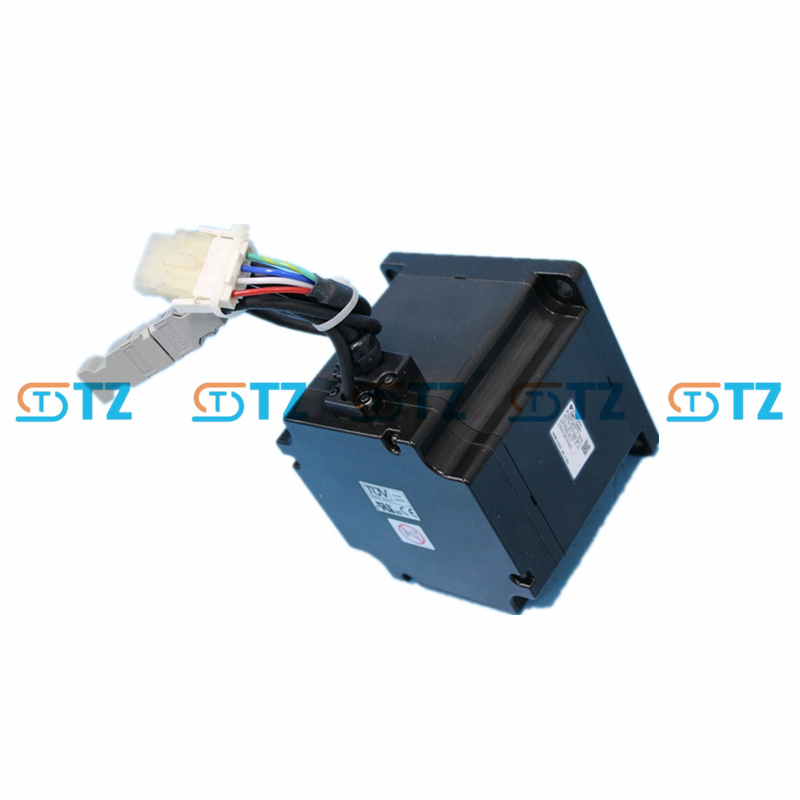

YASKAWA SGMM-15AAA41 AC SERVO MOTOR SIGMA II SERIES

Product parameter

Model: SGMM-15AAA41

Series: Sigma II SGMPH

Rated power: 1.5kW (2.0HP)

Power supply voltage: Three-phase 200V (AC 200-230V, 50/60 Hz)

Rated speed: 3000 r/min

Maximum rotational speed: 5000 r/min

Rated torque: 4.77 Nm (150 N·m, for reference, the unit may be the description error, and the actual torque is 4.77 Nm)

Peak torque: Approximately 14.3 Nm (estimated to be three times the rated torque, based on the characteristics of Sigma II)

Rated current: 7.5A

Encoder: 13-bit incremental encoder (2048 x 4 resolution)

Shaft end design: Straight shaft with keyway (Straight with key), no oil seal

Optional component: No brake

Protection class: IP42 (Except for the rotating part of the output shaft, for reference)

Insulation class: A grade (heat resistance class)

Insulation resistance: DC 500V, above 10 MΩ

Withstand voltage: AC 1500V, 1 minute

Ambient temperature: 0°C to +40°C

Environmental humidity: 20% to 80% (no condensation)

Installation method: Flange type

Rotation direction: clockwise on the load side (CCW)

Vibration level: V15

Compliance standards: CE, UL/cUL (Please refer to the YASKAWA manual for confirmation)

Feature

High torque output: Medium inertia design, providing a rated torque of 4.77 Nm and a peak torque of up to 14.3 Nm, suitable for load matching optimization.

High dynamic response: Rated speed 3000 r/min, maximum 5000 r/min, suitable for rapid acceleration and short positioning time.

Incremental encoder: The 13-bit encoder (2048 x 4) provides high-resolution feedback to ensure precise position control.

Compact and flat design: High torque-length ratio, suitable for installation environments with limited space.

Durability: IP42 protection class (except for the output shaft), A-class insulation, suitable for A variety of industrial environments.

Compatibility: When used in conjunction with YASKAWA Sigma II servo drives (such as the SGDH series), it supports speed,

torque and position control.

Simple maintenance: The main circuit and the control circuit are completely separated. When an alarm occurs, the main circuit can be disconnected separately, which is convenient for maintenance.

Application scenario

Robots: Drive small and medium-sized robot arms to achieve precise trajectory and positioning control.

CNC machine tools: Control the feed axis or rotation axis of CNC machine tools to improve processing accuracy.

Packaging machinery: Drive conveyor belts, labeling or sealing equipment to enhance production efficiency.

PCB drilling machine: High dynamic response supports high-speed drilling operation.

Material handling: Achieving the handling and positioning of workpieces in an automated production line.

Semiconductor equipment: High-precision tasks for chip mounting or testing equipment.

Industry: Robotics, electronic manufacturing, automotive parts, packaging, semiconductors.
