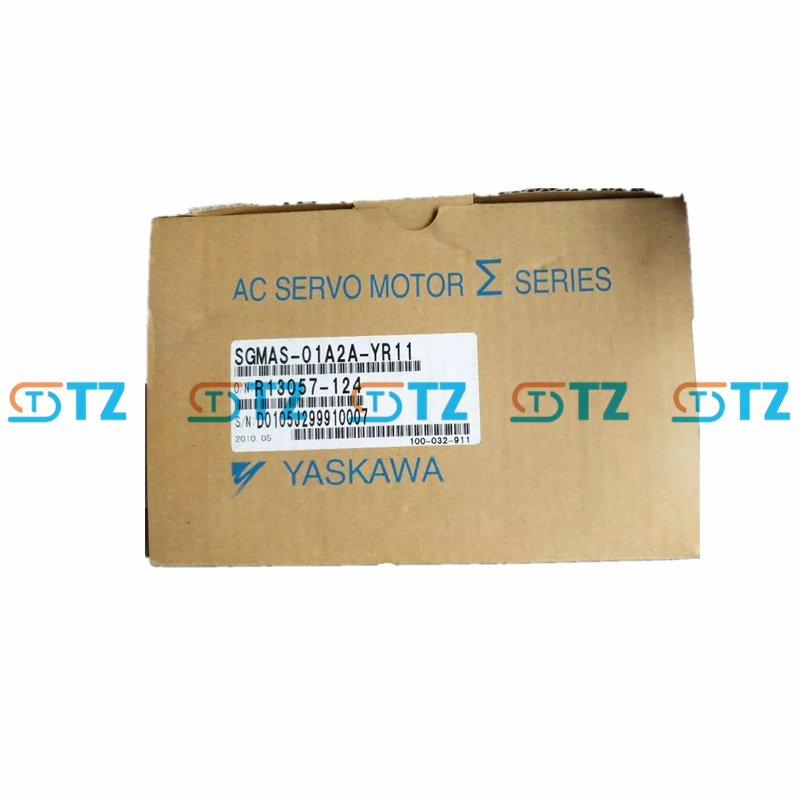

YASKAWA SGMAS-01A2A-YR11 AC SERVO MOTOR SIGMA-III SERIES

Product parameter

Model: SGMAS-01A2A-YR11

Series: Sigma-III SGMAS

Rated power: 100 W (0.1kW)

Rated voltage: 200 VAC (single or three phase, depending on driver configuration)

Rated current: 0.91A

Rated speed: 3000 RPM

Maximum speed: 5000 RPM

Rated torque: 0.318 Nm

Peak torque: about 0.954 Nm

Rotor inertia: low inertia, about 0.0195 × 10⁻⁴ kg·m²

Encoder: 17-bit incremental encoder (131072 ppr)

Protection class: IP55

Insulation class: Class B

Shaft end design: straight shaft with keyway, no brake, no oil seal

Cooling method: natural cooling

Ambient temperature: 0 to +40°C

Ambient humidity: 20% to 80% (no condensation)

Vibration rating: 15 µm or less

Certification: UL, cUL, CE (according to EN 50178, EN 55011 Class A, EN 61800-3)

Feature

Low power high dynamic performance: 100 W rated power and 0.318 Nm rated torque (peak 0.954 Nm) for small, light load applications. Low inertia design provides fast acceleration and response.

High precision positioning: The 17-bit incremental encoder (131072 ppr) ensures high resolution position control. Supports full closed-loop control (compatible drivers, such as SGDS-01A).

Compact design: Miniaturized construction (40 mm flange) for space-constrained equipment. Natural cooling, no additional cooling equipment.

Environmental adaptability: IP55 protection class (except shaft end), suitable for general industrial environment, oil seal can improve protection performance.

Flexible configuration: Straight shaft with keyway for small mechanical connections. Optional brake or oil seal.

Drive compatibility: Designed for Sigma-III drives such as SGDS-01A, it is also compatible with Sigma-II (SGDH-01AE) and Sigma-5 (SGDV-R90A) drives and supports 17-bit encoders. Analog voltage/pulse train control and MECHATROLINK-II communication (depending on driver configuration) are supported.

Application scenario

Electronic assembly: Drive small pickup and placement devices or placement machines to meet high precision requirements.

Small robots: Control the joints of desktop robots or lightweight robotic arms to provide fast response.

Packaging equipment: Drive a small conveyor or label machine to ensure precise movement.

Medical devices: Positioning systems for precision instruments such as blood analyzers.

Textile machinery: Control of small feeding mechanisms or sewing machine components.

Test equipment: Drive the fine-tuning mechanism of the laboratory platform to maintain stability.
