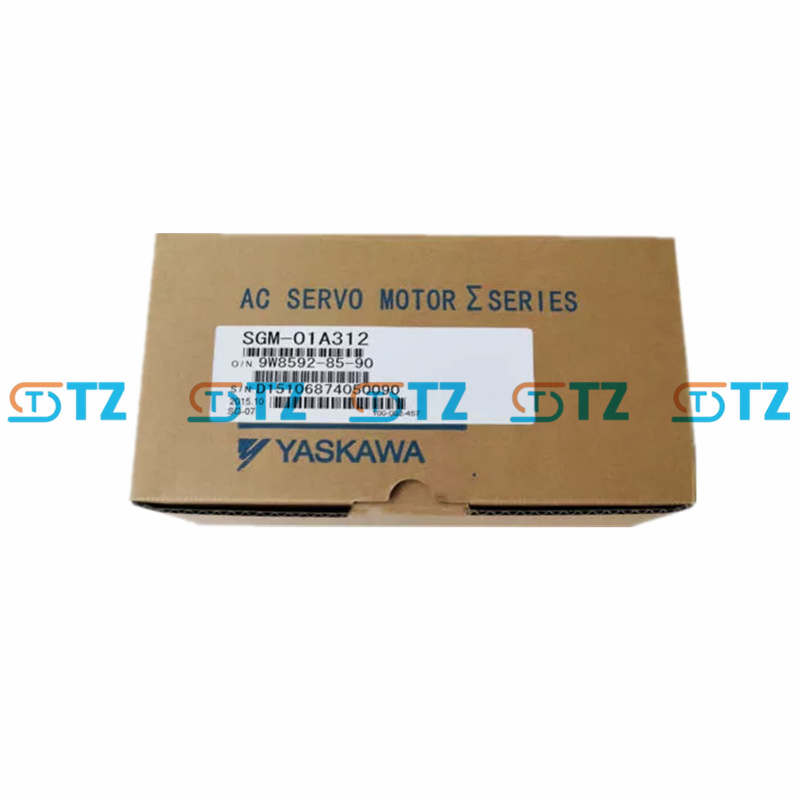

YASKAWA SGM-01A312 AC SERVO MOTOR SGM SERIES

Product parameters

Model: SGM-01A312

Series: SGM (Early Servo Motor Series)

Rated power: 100W (0.13HP)

Power supply voltage: Single-phase/three-phase 200V (AC 200-230V, 50/60 Hz)

Rated speed: 3000 r/min

Maximum rotational speed: 5000 r/min

Rated torque: 0.318 Nm

Peak torque: about 0.954 Nm

Rated current: 0.87A

Encoder: 13-bit incremental encoder

Shaft end design: Straight shaft with keyway, no oil seal

Brake: No brake

Protection class: IP55

Insulation class: B class (heat resistance class)

Insulation resistance: DC 500V, above 10 MΩ

Withstand voltage: AC 1500V, 1 minute

Ambient temperature: 0°C to +40°C

Environmental humidity: 20% to 80% (no condensation)

Installation method: Flange type

Rotation direction: clockwise on the load side (CCW)

Vibration level: V15

Complies with standards: CE, UL/cUL

Feature

Low inertia design: High torque-inertia ratio, providing rapid acceleration and short positioning time, suitable for high dynamic response applications

High-precision feedback: The 13-bit incremental encoder (2048 x 4) ensures precise position control. If it is an absolute encoder, it supports position retention upon power failure.

Compact and lightweight: Small flanges and light weight, suitable for space-constrained equipment, simplify installation.

High power density: Efficient operation at 100W power, suitable for high-speed tasks with small loads.

Durability: IP55 protection grade (except for the shaft end), vibration resistance 49 m/s², B-class insulation, suitable for industrial environments.

Compatibility: In conjunction with YASKAWA early drives or Sigma III drives, it supports speed, torque and position control. Thermal management: Efficient cooling design ensures stable thermal performance during continuous operation.

Application scenarios

Chip mounting machine: High dynamic response supports rapid positioning of semiconductor equipment.

PCB drilling machine: Precisely control the drilling position to enhance production efficiency.

Small robots: Drive lightweight robot arms to achieve rapid trajectory control.

Automated testing equipment: for precise positioning and motion control.

Packaging machinery: Drives small labeling or sorting equipment to optimize the production process.

Industry: Electronic manufacturing, semiconductors, robotics, packaging, light industry.
