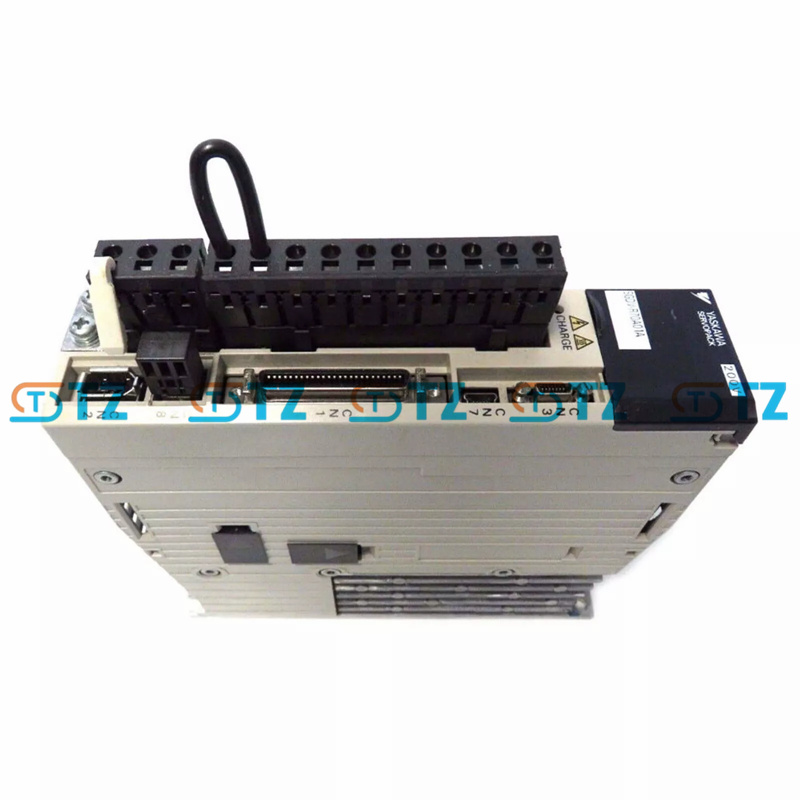

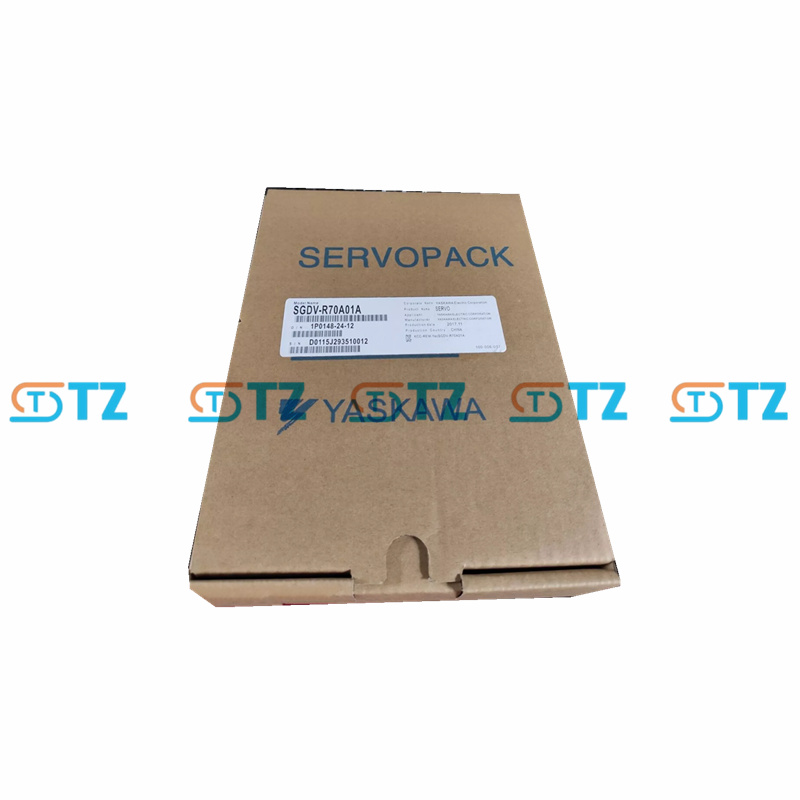

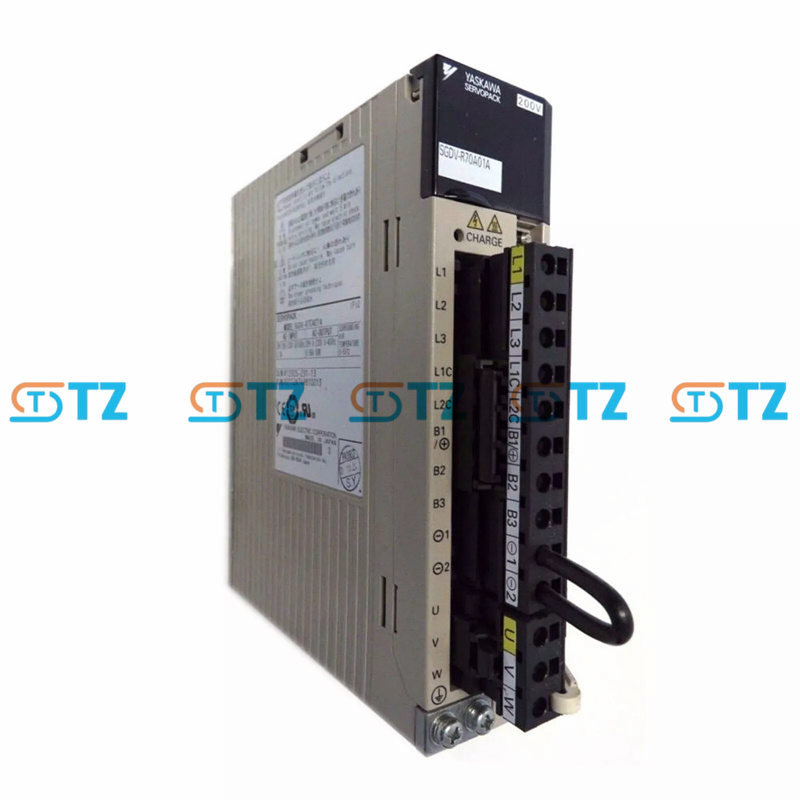

YASKAWA SGDV-R70A01A AC SERVO DRIVER Sigma-V SERIES

Product parameters

Power output: 50W

Input power supply:

Main circuit: single-phase/three-phase, 200-230VAC, 50/60Hz, 0.8A

Control circuit: Single-phase, 200-230VAC, 50/60Hz

Output power supply: 0-230VAC, 0-400Hz, 0.66A (continuous), 2.1A (peak)

Control mode: Analog voltage/pulse sequence control (position, speed, torque)

Encoder support: Incremental encoder (17-bit or 20-bit), absolute encoder (optional)

Speed control range: 1:5000

Frequency response: 1kHz

Analog input:

Torque control: -3 to +3VDC (adjustable -1 to +10VDC, 16µs time constant)

Speed control: -6 to +6VDC (adjustable -2 to +10VDC, 30µs time constant)

Digital output Alarm (ALO1/2/3), Positioning completion (/COIN), consistent speed (/V-CMP), motor rotation (/TGON), servo

readiness (/S-RDY), Torque limit (/CLT), speed limit (/VLT), brake interlock (/BK), Warning (/WARN), Approach (/NEAR), status

monitoring EDM1), encoder pulse (PAO/PBO/PCO)

Communication interface: RS-422

Protection grade: IP10

Ambient temperature: 0 to +55°C (operating), -20 to +85°C (storage)

Environmental humidity: 20% to 90% (no condensation)

Cooling method: Natural cooling

Certification: UL 508C, EN 50178, EN 55011 Class A Group 1, EN 61800-3, EN 61800-5-1, EN 954 Cat.3, IEC 61508 SIL2

Function

High-performance control: 1kHz frequency response, reduces positioning time, and supports high-precision position, speed and torque control.

Auto-tuning: The Tuning-less function and advanced auto-tuning reduce setup time and eliminate the need for manual adjustment.

Vibration suppression: Enhanced vibration suppression function reduces mechanical vibration and ensures smooth operation.

Quick setup: Simplify installation and debugging through the setup wizard and wiring confirmation function of SigmaWin+ software.

Safety features: Supports overcurrent, overvoltage and over-temperature protection, and complies with the IEC 61508 SIL2 safety standard.

Flexible control: Supports analog/pulse sequence input, compatible with multiple control modes, and adaptable to complex mechanical actions.

High reliability: UL/cUL/CE certification, IP10 protection level, suitable for industrial environments.

Communication support: RS-422 interface, facilitating integration with PLC or other controllers.

Application scenarios

Semiconductor equipment: Wafer handling and chip mounting require high-precision positioning.

CNC machine tools: Small CNC equipment that requires precise control and rapid response.

Small robots: micro mechanical arms, AGV navigation, requiring compact design and high dynamic performance.

Electronic manufacturing: Surface mount technology (SMT) machines and sorting systems require rapid start and stop as well as position control.

Packaging equipment: Small packaging machines, which need to operate efficiently and reliably.
