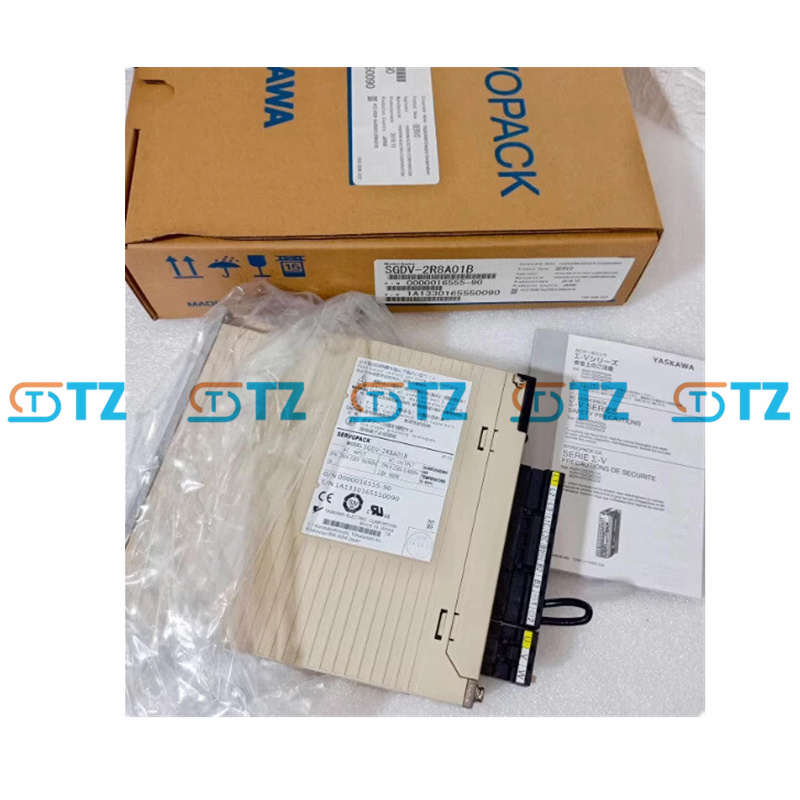

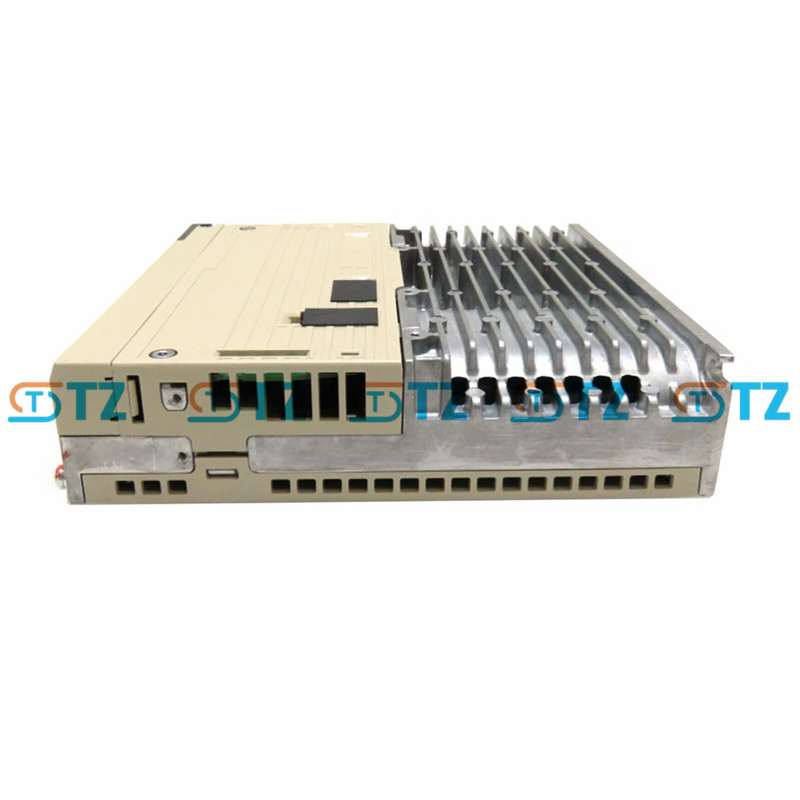

YASKAWA SGDV-2R8A01B SERVOPACK SIGMA5 SERIES

Product parameter

Model: SGDV-2R8A01B

Series: Sigma-5 SERVOPACK

Rated power: 400W (0.53HP)

Input power supply:

Voltage: 170-253 VAC, three-phase (nominal 200V, +10%/-15%;) Support 200/208/220/230/240 VAC

Frequency: 50/60 Hz

Current: 2.4A

Output power supply:

Voltage: 0-230 VAC, three-phase

Continuous current: 2.8A

Peak current: 8.5A

Control mode: Speed, torque, position control

Control mode: Full-wave rectification, IGBT PWM control, sine wave drive

Speed control range: 1:5000

Soft start time: 0-10 seconds (adjustable)

Encoder feedback: Supports incremental and absolute encoders (absolute encoders require batteries)

Communication interface: RS-422 (Supports MECHATROLINK-II/III, EtherCAT, etc. Additional modules are required)

Integrated features: Built-in positioning function Vibration suppression (FT001 upgraded Specification) JOG operation Origin search Full closed-loop control Alarm history

Ambient temperature: 0°C to +55°C

Protection grade: IP10 (Needs to be installed in the control cabinet to avoid moisture, corrosive gases and dust)

Cooling method: Natural cooling

Complies with standards: CE, UL/cUL, RoHS

Other features: Equipped with Conformal coating to enhance corrosion resistance

Feature

High-precision control: Supports speed, torque and position control, with a speed control range of 1:5000, providing outstanding motion accuracy and suitable for high-response applications.

Advanced technology: IGBT PWM control and sine wave drive are adopted to ensure smooth operation and efficient performance; The vibration suppression function (FT001) reduces the positioning time.

Flexible communication: Supports MECHATROLINK-II/III or EtherCAT (module required) through RS-422 to achieve multi-axis synchronization and phase control.

Compact design: The small size makes it easy to integrate into space-constrained control cabinets, simplifying installation and maintenance.

Protection function: Built-in overcurrent and overvoltage protection, with alarm history record to ensure safe and reliable operation.

Additional features: Supports fixed-point output (FT006), allowing for output setting without the need for an upper controller. Absolute value system support (FT008) facilitates the construction of high-precision positioning systems.

Compatibility: Seamlessly cooperates with YASKAWA Sigma-5 series rotary servo motors (such as SGM7P, SGMAV), and the encoder feedback supports flexible configuration.

Application scenario

Robots: Drive small and medium-sized robot arms to achieve precise positioning and trajectory control.

CNC machine tools: Control the feed axis or rotation axis of CNC machine tools to improve processing accuracy.

Packaging machinery: Drive conveyor belts, labeling or sealing equipment to optimize production efficiency.

Semiconductor equipment: used for high-precision tasks such as chip mounting machines and PCB drilling stations.

Material handling: Achieving the handling and positioning of workpieces in an automated production line.

Food processing: Drive food packaging or sorting equipment to meet cleanliness and precision requirements.

Industry: Robotics, electronic manufacturing, automotive parts, food processing, semiconductors.
