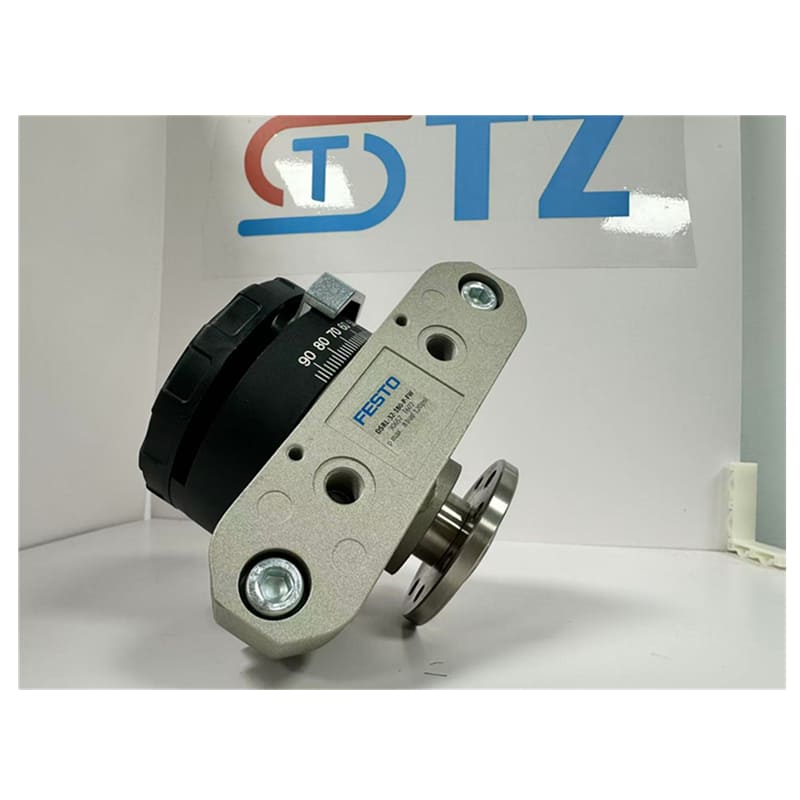

FESTO DSRL-32-180-P-FW PNEUMATIC SEMI-ROTARY DRIVE DSRL SERIES

Product parameter

Model: DSR-32-180-P-FW

Part Number: 30657

Size: 32

Bore: 32 mm

Rotation Angle: 180° (adjustable range 0°-180°)

Buffer Angle: 1.2°

Working pressure: 1.5 bar to 8 bar

Theoretical torque: 10 Nm (at 0.6 MPa / 6 bar)

Maximum rotation frequency: 3 Hz (at 0.6 MPa / 6 bar)

Pneumatic connection: G1/8 threaded port

Working medium: Compressed air, according to ISO 8573-1:2010 [7:-:-]

Operation mode: Double-acting

Flexible cushioning rings/plates Flexible cushioning rings/plates

Location detection: None

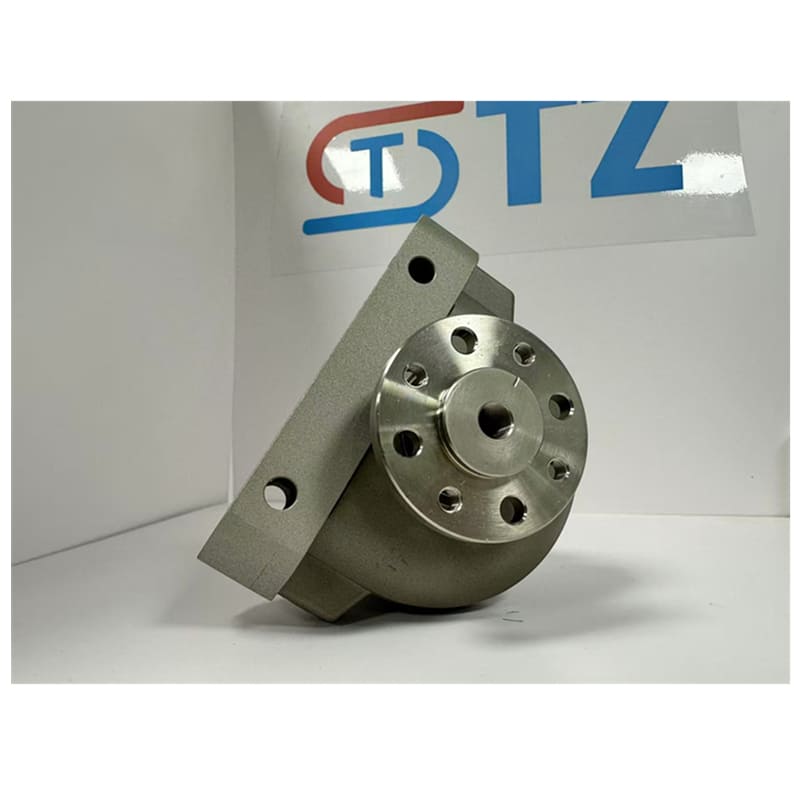

shaft type: Hollow flanged shaft

Sealing material: NBR (Nitrile butadiene rubber)

Drive shaft material: steel, nickel plated

Compliance standards: VDMA24364-B2-L, LABS (PWIS) compliance

Installation mode: Through hole. Installation position is optional

Ambient temperature: -10°C to +60°C

Feature

High torque output: 10 Nm theoretical torque, suitable for rotating tasks with medium loads.

Precise rotation: 180° adjustable rotation Angle to meet a variety of positioning requirements.

Double acting design: Driven by compressed air, fast response and high efficiency.

Elastic cushion: The elastic cushion at both ends absorbs shock, reduces wear and extends life.

Hollow flange shaft: easy to direct transmission, reduce external connecting parts, improve transmission efficiency.

Flexible installation: Through hole design, support any installation position, adapt to complex mechanical structure.

Durable material: nickel-plated steel shaft and NBR seal, corrosion resistant, suitable for industrial environments.

Application scenario

Part handling and transfer: rotation, flipping or positioning of parts in an automated production line.

Valve control: Drive valve switch, widely used in fluid control systems (such as chemical, water treatment).

Assembly line: The Angle of the workpiece is adjusted during assembly.

Packaging machinery: used for parts that need to rotate in packaging equipment (such as sealing and labeling).

Robot end effector: As a rotating part of the robot arm, it provides twisting function.

Typical industries: Manufacturing, automotive industry, electronic assembly, food and beverage processing, pharmaceuticals.
