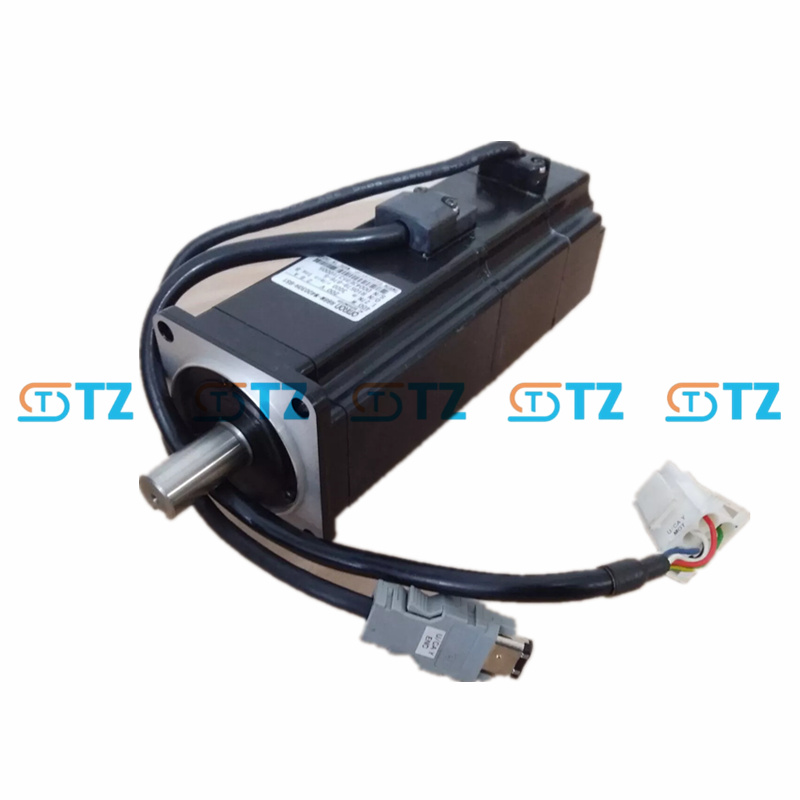

OMRON R88M-W40030H-BS1 AC SERVO MOTOR W SERIES

Product parameter

Rated output power: 400W

Rated speed: 3000 r/min

Maximum speed: usually up to 4500-5000 r/min Rated torque: about 1.27Nm

Peak torque: approx. 3.81 Nm (peak torque is usually 3 times rated torque)

Input voltage: 200 VAC

Encoder type: Incremental encoder (usually 2500 p/r or higher resolution)

Brake: Equipped with electromagnetic brake to hold position in case of power failure

Shaft type: Straight shaft with keyway and thread (S1 for keys)

Protection class: IP55 or IP65

Operating temperature: 0°C to 40°C

Insulation class: F class

Feature

High precision positioning: Equipped with incremental encoder to support high resolution position feedback.

Fast response: High dynamic performance, suitable for high-speed start-stop and frequent motion applications.

Electromagnetic brake: Lock the motor shaft in case of power failure or emergency to ensure safety.

Shaft design with keyway: easy to connect directly with mechanical load, improve transmission efficiency.

Compact structure: Compact design, suitable for equipment integration with limited space.

Strong compatibility: With Omron W series servo drive, support position, speed and torque control.

Application scenario

Robotics: For small and medium-sized robot joint drives or end-effectors.

Packaging machinery: Precise material handling and positioning in high-speed packaging equipment.

Conveyor system: For conveying equipment that requires quick start and stop and position holding.

Textile machinery: supports high-speed winding or cutting operations.

Automated assembly line: used for multi-axis synchronous movement to improve production efficiency.

Printing equipment: provides precise paper transfer and positioning control.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
