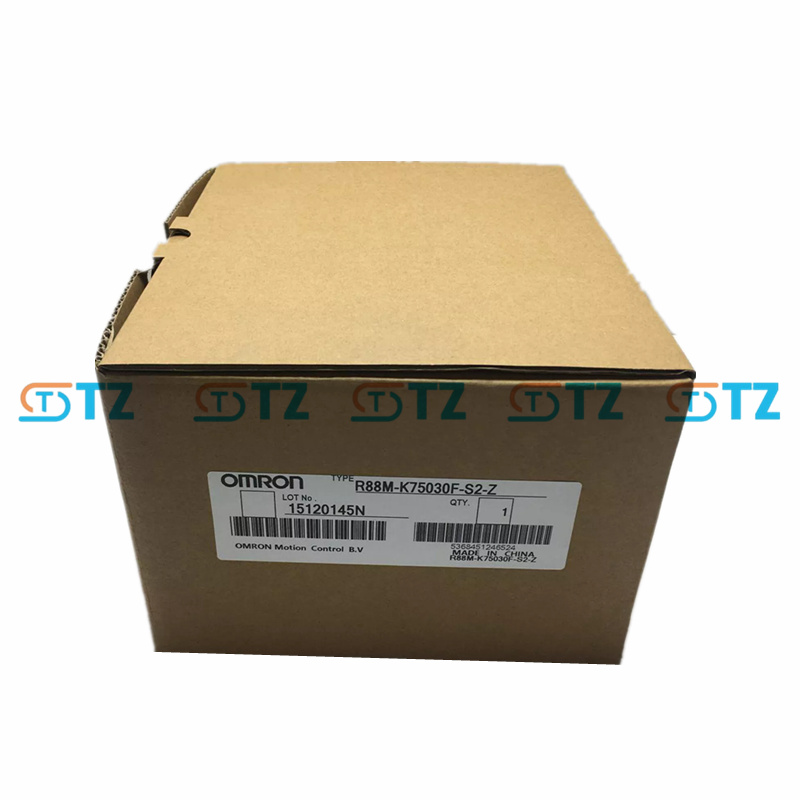

OMRON R88M-K75030F-S2-Z AC SERVO DRIVER G5 SERIES

Product parameter

Rated power: 200 W

Rated voltage: 200 VAC

Rated speed: 3000 rpm

Rated torque: 0.64Nm

Maximum speed: Usually up to 6000 rpm (depending on the drive limit)

Encoder type: Absolute encoder (20-bit resolution)

Inertia class: Low inertia (suitable for high dynamic response)

Protection class: IP65 (dustproof and waterproof, suitable for industrial environment)

Brake: No brake (S2 means no brake)

Shaft type: Keyed Shaft with keyway

Weight: About 1.7kg

Operating temperature: 0°C to 40°C

Matching driver: R88D-KN02H-ECT (EtherCAT type) or R88D-KP02H (pulse type) is recommended

Feature

High precision positioning: The 20-bit absolute encoder provides high-resolution position feedback without the need for origin calibration with each power-on.

High dynamic performance: Low inertia design for fast start-stop and high acceleration applications.

Environmental adaptability: IP65 protection grade, stable operation in dust or water splash environment.

Compact design: Miniaturized construction for easy installation in space-constrained equipment.

Flexible compatibility: Support for pulse train input or EtherCAT control (depending on the drive) for easy integration into different systems.

Application scenario

Small robot: For robot joint drive, providing precise motion control.

CNC machine tools: Drive the feed shaft or auxiliary shaft in a small CNC device.

Packaging equipment: Performs positioning or transfer tasks in high-speed packaging lines.

Printing equipment: for the precise control of rollers or paper feeding mechanisms.

Automated production lines: Drive conveyor belts or small robotic arms in assembly or handling systems.
