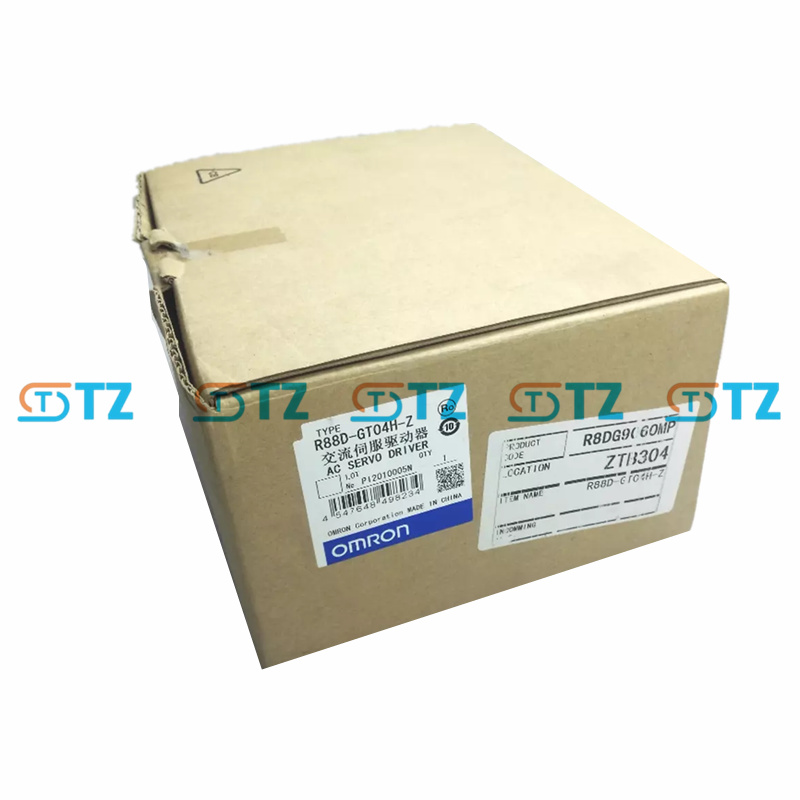

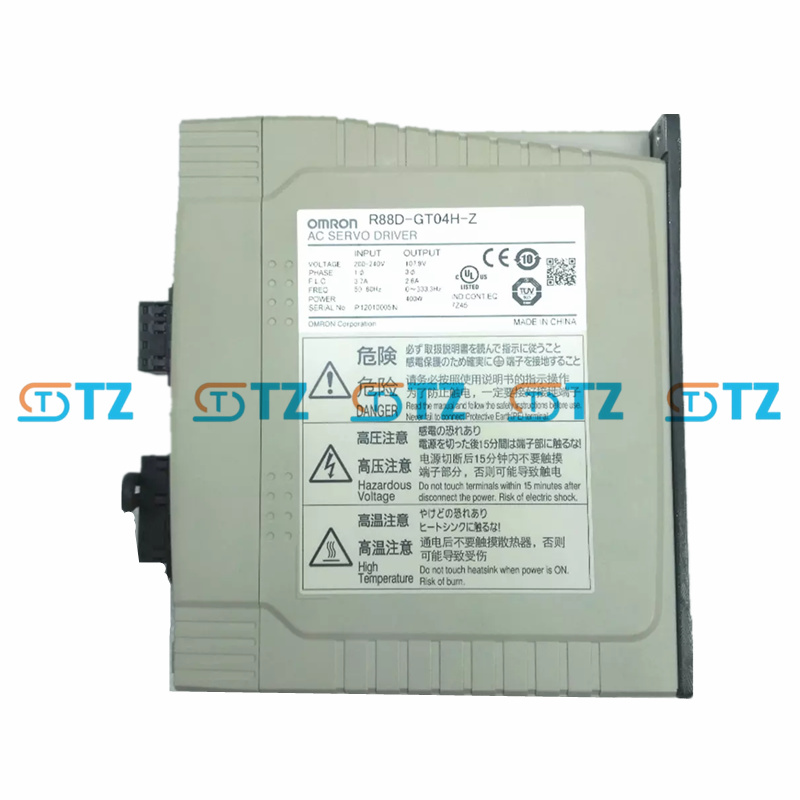

OMRON R88D-GT04H-Z SERVO DRIVER G SERIES

Product parameter

Model: R88D-GT04H-Z

Rated power: 400W

Input voltage: single-phase 200-240V AC (170-264V), 50/60Hz

Control mode: Full digital servo control, support pulse train or analog input

Input type: Pulse input/Analog input

Output current: Continuous output current 2.6A (rms)

Instantaneous maximum output current: 7.8A (rms)

Speed feedback: Incremental encoder, typically 2000 pulses/RPM (depending on supporting motor)

Inverter method: PWM (Pulse Width modulation) based on IGBT

PWM frequency: 11.7kHz

Operating temperature: 0°C to 55°C

Storage temperature: -20°C to 65°C

Max working humidity: 90% (no condensation)

Protection Class: IP10 (built-in panel design)

Certification standards: Compliant with UL, cUL and EN (EMC and Low Voltage Directives)

Feature

Multiple control modes: Support pulse input (up to 500 kpps) and analog input (speed/torque control) for flexibility to adapt to different applications.

Real-time adaptive tuning: Automatically adjusts parameters to load changes for increased responsiveness and stability.

Damping control: Suppress the vibration of low-rigidity mechanisms such as long belts or robotic arms to achieve smooth operation.

High-precision positioning: Through high-resolution encoder feedback and optimized control algorithms, positioning accuracy is ensured.

Overload protection: overload, overvoltage, overheating and other protection functions to ensure equipment safety.

Encoder output segmentation: Support the encoder signal segmentation output (1-2500 pulse/revolution) for external device synchronization.

Status monitoring: Front panel LED indicator and parameter Settings display operating status and fault information.

Compatibility: Seamless match with Omron G Series servo motors such as R88M-G40030H.

Application scenario

Packaging machinery: used to control the precise positioning of conveyor belts or packaging materials to improve production efficiency.

Small machining equipment: such as small CNC machine tools or engraving machine auxiliary shaft drives, providing high responsiveness.

Automated assembly line: Precise motion control during part handling or assembly.

Printing equipment: Control the movement of the printing roller or paper feeding mechanism to ensure consistency.

Lightweight robot: As a drive unit for small robotic joints or actuators.
