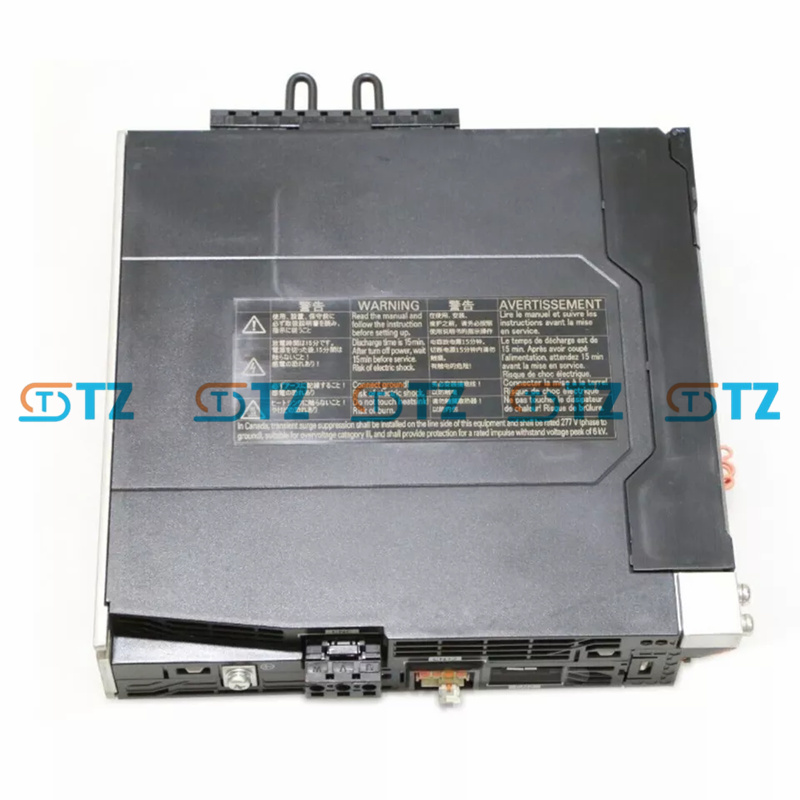

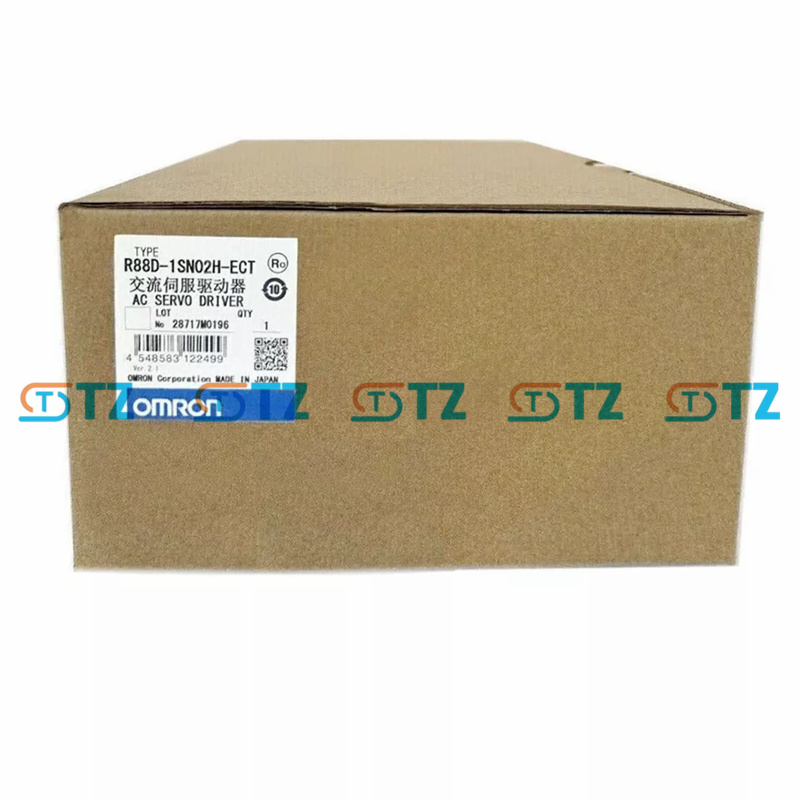

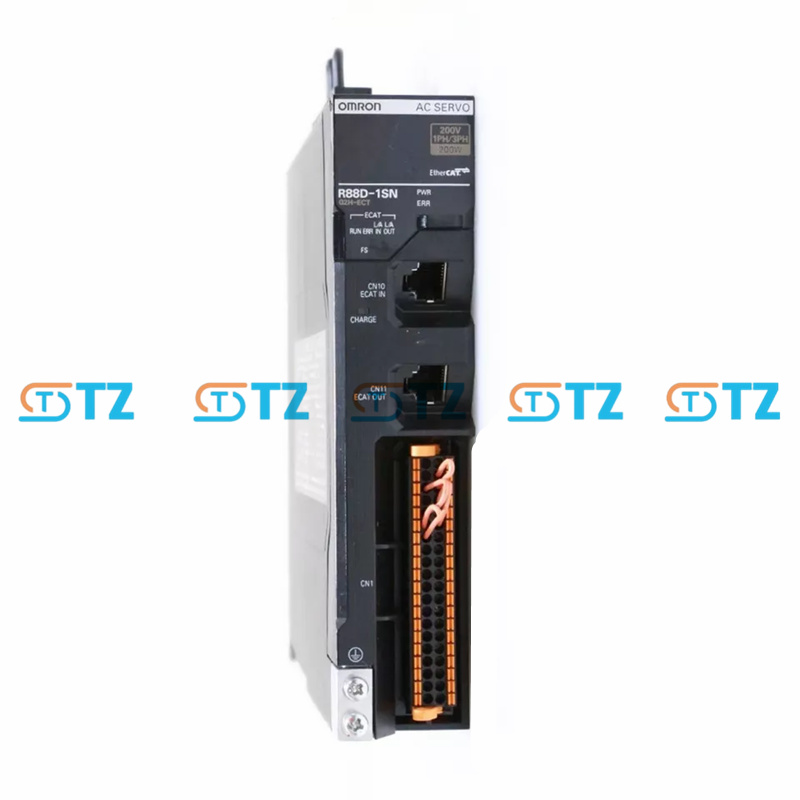

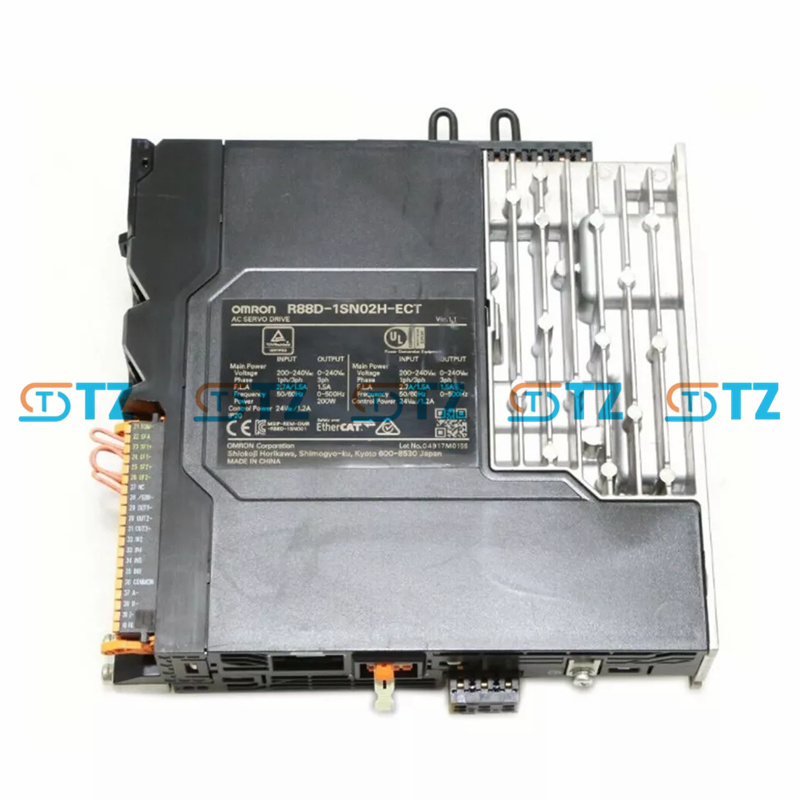

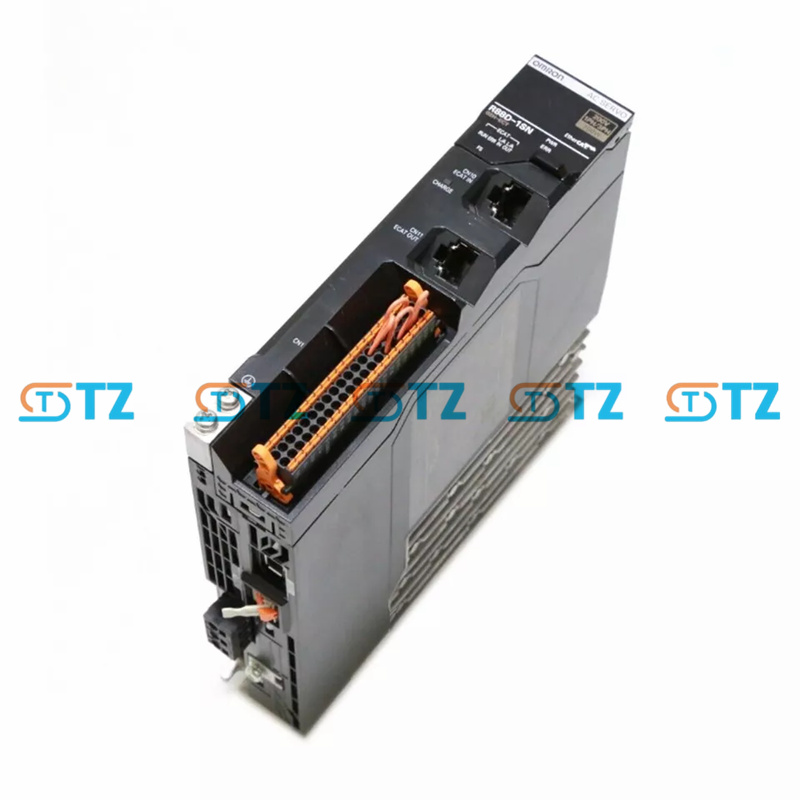

OMRON R88D-1SN02H-ECT AC SERVO MOTOR 1S SERIES

Product parameter

Input voltage: 200-240 VAC, single phase, 50/60 Hz

Rated output power: 200 W

Output current: 1.5A (continuous), up to 4.5A (instantaneous)

Control mode: EtherCAT communication (support position, speed and torque control)

Support motor: 1S series servo motor with 200 W (such as R88M-1M20030T or R88M-1M20030H)

Encoder feedback: Support incremental encoder or absolute encoder (depending on motor configuration)

Protection Class: IP20 (indoor use)

Operating temperature: 0°C to 55°C

Cooling method: natural cooling

Weight: About 1.3kg

Communication interface: EtherCAT (compliant with CoE protocol, CiA 402 driver profile)

Safety function: STO (Safe torque off) is supported, in accordance with EN ISO 13849-1 (Cat.3 PLd/PLe, depending on connection mode)

Feature

EtherCAT Real-time control: Seamless connection to controllers such as the NJ/NX series via a high-speed EtherCAT network for real-time data exchange.

High precision positioning: Supports high resolution encoder feedback to ensure precise motion control.

Multi-function control: Position, speed and torque control for a variety of applications.

Safety function: Built-in STO (Safe torque off) to improve system safety.

Fast response: Frequency response up to 2 kHz provides excellent dynamic performance.

Easy installation: Compact design and user-friendly wiring simplify installation and commissioning.

Application scenario

Small robot: Used for robot joint drive to provide precise motion trajectory control.

CNC machine tools: Drive the feed shaft or auxiliary shaft in a small CNC device.

Packaging equipment: Performs positioning or transfer tasks in high-speed packaging lines.

Printing machinery: for the precise control of rollers or paper feeding mechanisms.

Automated production lines: Drive conveyor belts or small robotic arms in assembly or handling systems.
