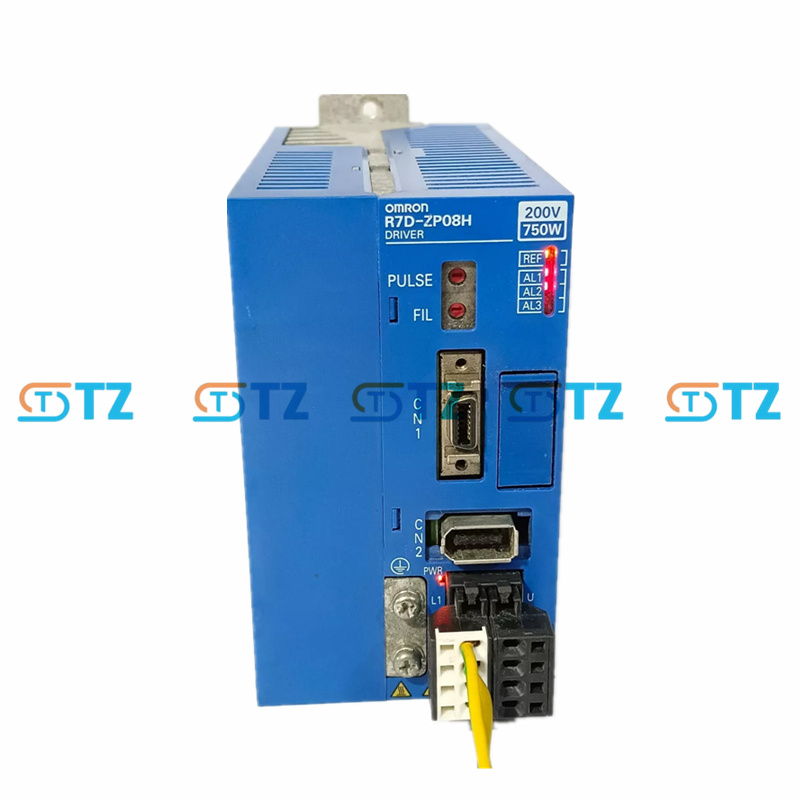

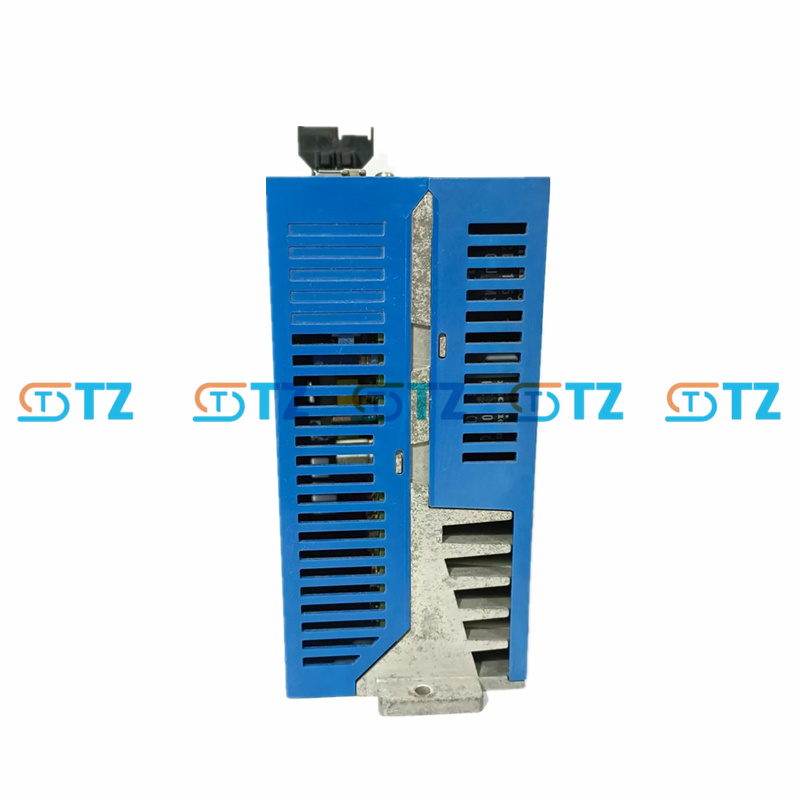

OMRON R7D-ZP08H SERVO DRIVER SMARTSTEP FAMILY

Product parameter

Model: R7D-ZP08H

Rated power: 750W

Input voltage: single-phase 200-240V AC (170-253V), 50/60Hz

Control mode: full digital servo control

Input type: pulse input

Output current: Continuous output current 4.9A (rms)

Instantaneous maximum output current: approximately 14.7A (rms)

Speed feedback: Incremental encoder, 2000 pulses/RPM

Inverter method: PWM (Pulse Width modulation) based on IGBT

PWM frequency: 11.7kHz

Operating temperature: 0°C to 55°C

Storage temperature: -20°C to 85°C

Max working humidity: 90% (no condensation)

Protection Class: IP10 (built-in panel design)

Certification standards: Compliant with UL, cUL and EN (EMC and Low Voltage Directives)

Feature

Pulse input control: High-speed pulse input (up to 500 kpps) is supported for precise position control.

Automatic tuning: The built-in automatic tuning function calculates the load and optimizes the gain in real time, simplifying the setup.

High responsiveness: Provides fast acceleration and deceleration response, suitable for dynamic positioning tasks.

Overload protection: with overload, overvoltage, overheating and other protection functions to ensure safe operation of the equipment.

Simple operation: Without complex programming, it can be controlled by sending pulse signals from an external controller.

Compatibility: Seamless matching with Omron SmartStep series servo motors such as R7M-A75030.

Status indicator: The LED indicator on the front panel displays the operating status and fault information for easy debugging and maintenance.

Application scenario

Packaging machinery: used to control the precise positioning of conveyor belts or packaging materials to improve production efficiency.

Small machining equipment: such as the auxiliary shaft drive of CNC machine tools, providing high torque and fast response.

Automated assembly line: Precise positioning of parts during assembly or handling.

Textile machinery: Controls the movement of weaving or spinning equipment to ensure consistency and stability.

Robotics: As a driving unit for small robotic joints or actuators.
