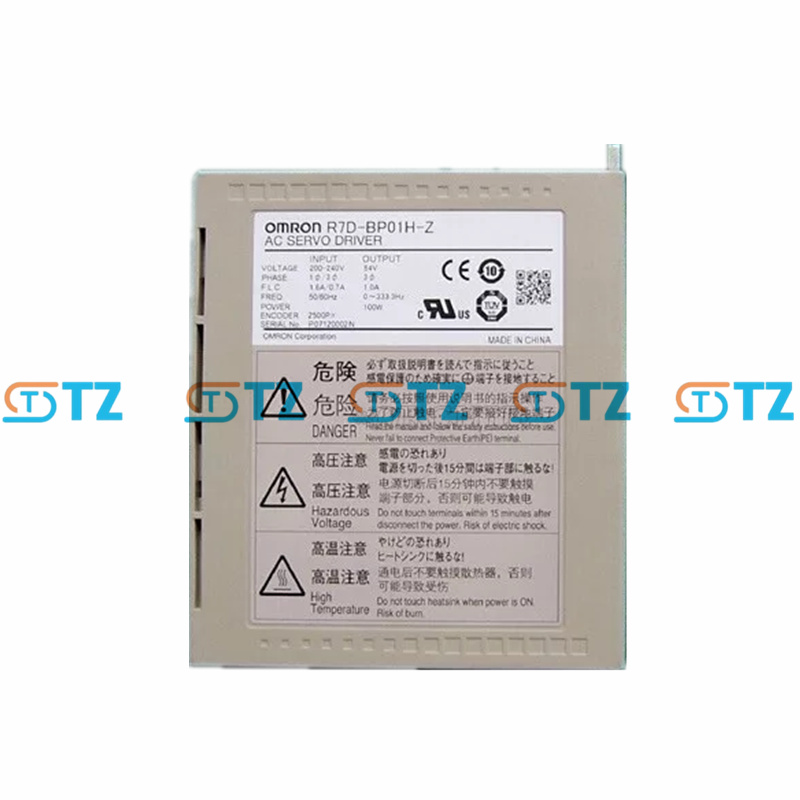

OMRON R7D-BP01H-Z AC SERVO DRIVER SMARTSTEP 2 SERIES
The Omron R7D-BP01H-Z is a SmartStep 2 series AC servo driver designed for simple, cost-effective motion control applications.
HS CODE : 8538909200
Product No :
OMRON R7D-BP01H-ZManufacture :
OMRONSize (cm) :
3.5*14*10.5Weight (kg) :
0.35Origin :
JAPANWarranty :
12 MonthLead Time :
Ready DRIVEDescription :
SERVO DRIVERProduct parameter
Power: 100 W
Input voltage: Single-phase 200-240 VAC (range: 170-264 VAC)
Frequency: 50/60 Hz
Output current: about 1.0A (continuous output, RMS)
Maximum instantaneous output current: Approx. 3.3A (RMS)
Control mode: pulse input (position control)
Feedback mode: Support incremental encoder (10,000 pulses/RPM)
PWM frequency: 12 kHz
Inverter method: PWM control based on IGBT
Environmental Conditions:
Operating temperature: 0°C to 55°C
Storage temperature: -20°C to 65°C
Humidity: 20% to 90% (no condensation)
Protection class: IP10 (need to be installed in the control cabinet)
Feature
Pulse input control: Line drive pulse input up to 500 kpps is supported for precise position control.
Online automatic tuning: Simplify the setup process and automatically adjust parameters to optimize performance.
Compact design: Ultra-small volume, saving control cabinet space.
Vibration suppression: Built-in adaptive resonance suppression filter to ensure smooth operation.
Protection function: Over-current, over-voltage and over-heat protection to improve system safety.
Application scenario
Small automation equipment: such as conveyor belt, simple sorting machine, used to drive light load moving parts.
Packaging machinery: Basic positioning control in a small sealer or labeling machine.
Textile equipment: Used for feeding or winding components to provide smooth power output.
Test device: Provides simple rotation control in laboratory or production line test systems.
Old system upgrade: As a spare part of the SmartStep series, it is used to maintain existing equipment.
