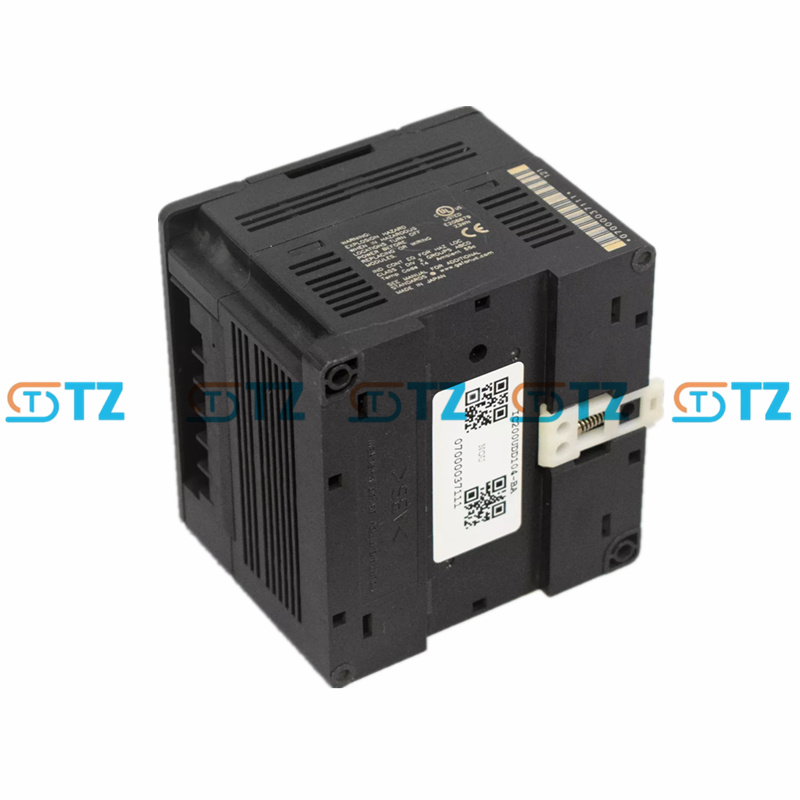

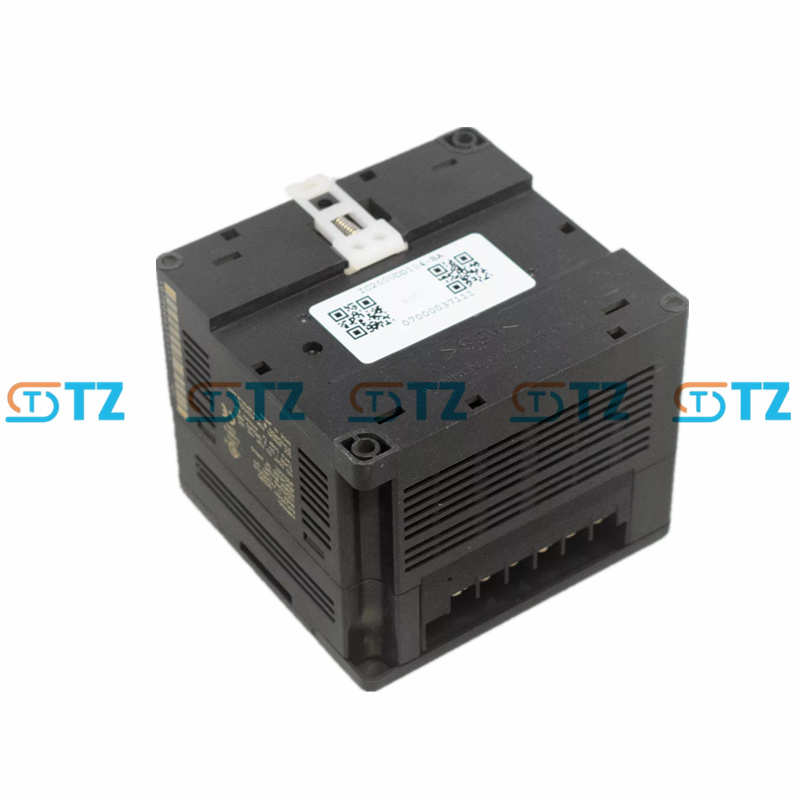

IC200UDD104 VersaMax I/O Family Digital Input Module

Basic Characteristic

Module type: digital input module

Series: VersaMax I/O series

Model number: IC200UDD104

Input type: Digital input (usually switch status, button, sensor, etc.)

Number of input channels: Provides 16 digital input channels to monitor the switching status of multiple devices at the same time.

Performance And Function

Input voltage range: Supports a wide range of input voltages (e.g. 24V DC) for a variety of industrial applications.

Input type: Dry contacts (switching contacts) or current-driven input signals are usually supported to ensure compatibility with different types of devices.

Input status detection: The on/off status of the device can be monitored and converted into a digital signal for system processing.

Isolation function: Provides isolation between the input signal and the control system, helping to reduce electromagnetic interference and ensure reliable signal transmission.

Interface And Connection

Wiring terminals: Standard wiring terminals are provided for easy connection to external devices, such as sensors, switches, and buttons.

Backplane connection: Modules are connected to other modules or PLC controllers via the VersaMax series backplane, ensuring data exchange and integration of the system.

Compatibility

VersaMax Series Compatibility: The module is fully compatible with other input/output modules and controllers in the VersaMax series, enabling a complete automated control system.

Device compatibility: Suitable for various types of digital input devices, such as buttons, switches, sensors, limit switches, etc.

Physical And Environmental Parameters

Compact design: The modules are compact and suitable for installation in space-constrained environments.

Operating temperature range: Support -40°C to +60°C operating temperature range, can be stable operation in different industrial environments.

Anti-electromagnetic interference: It has good anti-electromagnetic interference (EMI) ability and can adapt to complex industrial environments.

Application Field

Automated production line: used to monitor the status of equipment on the production line, such as limit switches, sensors, etc., to ensure the safety and smooth progress of the production process.

Process control: Monitor the switching status of various industrial equipment, such as pumps, valves, heaters, etc.

Building automation: Used in building control systems to monitor the switching status of lighting, heating, ventilation and air conditioning (HVAC) systems and other equipment.

Security system: Used for status monitoring of security equipment, such as access control system, safety switch, etc.

Safety And Protection Function

Anti-electromagnetic interference: conforms to industrial electromagnetic compatibility (EMC) standards, and can operate stably in environments with strong electromagnetic interference.

Overload protection: The module design usually includes overload protection function to prevent the input current or high voltage from causing damage to the module.

Advantage

High channel count: Provides up to 16 independent digital input channels for large-scale automated monitoring applications.

Wide voltage input: supports a variety of input voltage ranges to meet the needs of different control devices.

High reliability: With anti-interference ability, adapt to complex working conditions in industrial environment.

The GE Fanuc IC200UDD104 is an efficient and reliable digital input module for a wide range of automated control systems. Its multi-channel digital input function makes it ideal for monitoring the status of switches, sensors, buttons and other devices. Whether in production line automation, process control, or building management scenarios, the IC200UDD104 provides accurate and reliable input signals to ensure the normal operation and safety of the system.
