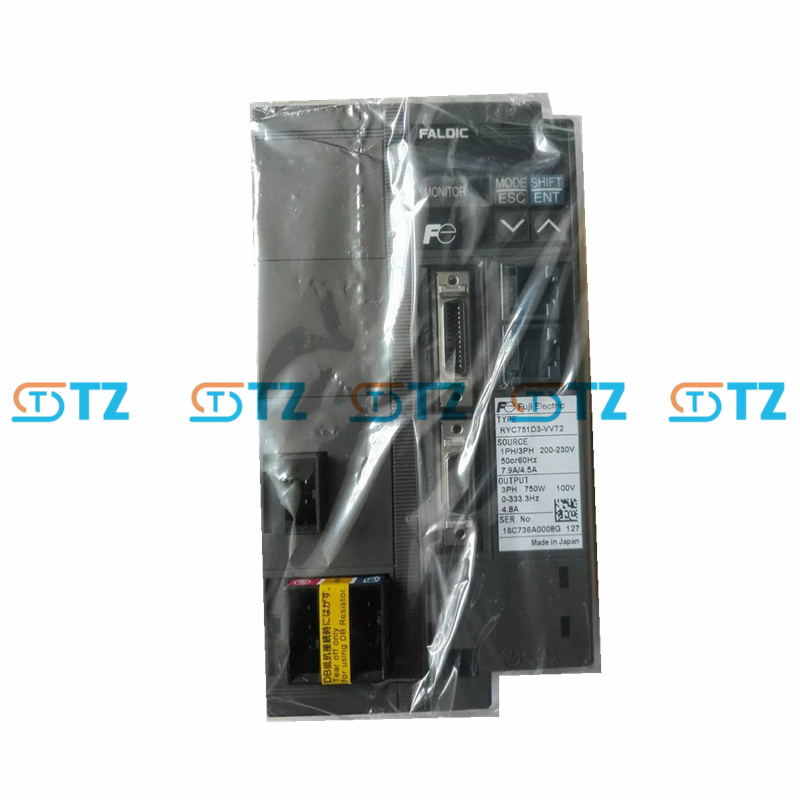

FUJI ELECTRIC RYC751D3-VVT2 COMPACT SERVO AMPLIFIER ALPHA5 SERIES

Product Parameters

Rated Power Output: 750 W (0.75 kW)

Input Voltage: Three-phase 200–230 VAC, 50/60 Hz

Input Current: ~4.3 A (nominal, varies with load)

Output Voltage: 0–230 VAC (proportional to motor requirements)

Output Current: ~4.8 A (continuous); peak current higher for short bursts

Control Modes:Position control Velocity control Torque control

Encoder Feedback: 17-bit incremental encoder (standard for VVT2 models, ~131,072 pulses/rev)

Protective Rating: IP20 (indoor use, requires enclosure for dust/water protection)

Cooling Method: Forced air cooling (internal fan)

Operating Temperature: 0°C to 55°C

Storage Temperature: -20°C to 85°C

Humidity: 20% to 90% (non-condensing)

Communication Interfaces: RS-485 (for parameter tuning and diagnostics with host controller)

Compatible Motors: Typically paired with GYG751CC2-T2E or similar 750 W middle-inertia motors (2000 rpm rated)

Safety Features:Overcurrent protection Overvoltage protection Overheat protection Encoder error detection

Dynamic Brake: Built-in (for emergency stopping, external resistor may be required for heavy loads)

Functions

Precise Motion Control: 17-bit incremental encoder support ensures high-resolution feedback (~131,072 pulses/rev) for accurate positioning. Ideal for applications requiring stable speed and torque control.

Versatile Control Modes: Position control for precise point-to-point movement. Velocity control for consistent speed regulation. Torque control for applications needing constant force.

High Dynamic Performance: Supports rapid acceleration/deceleration, compatible with motors up to 6000 rpm (depending on motor specs). Optimized for middle-inertia motors like GYG751CC2-T2E (2000 rpm rated).

Robust Protection: IP20 rating suitable for indoor control cabinets; external enclosures needed for harsher environments. Comprehensive fault detection (overcurrent, overvoltage, overheating, encoder errors).

Communication and Tuning: RS-485 interface allows parameter management and diagnostics via a host controller. Auto-tuning capabilities to optimize performance with paired motors.

Compact Design: Space-saving footprint for easy integration into control panels. Built-in fan ensures reliable cooling under continuous operation.

Safety and Reliability: Dynamic brake for emergency stops. Protective functions extend system lifespan and prevent damage.

Application Scenarios

Industrial Automation:

Robotics: Controls medium-sized robotic arms or grippers, balancing precision and payload capacity.

CNC Machinery: Drives spindles or feed axes in machining centers for accurate cutting or milling.

Packaging Systems: Powers high-speed filling, sealing, or cartoning machines.

Material Handling:

Conveyors: Regulates medium-duty conveyor systems for smooth material transport.

AGVs (Automated Guided Vehicles): Provides precise motion for logistics automation.

Electronics Manufacturing:

Assembly Lines: Supports high-speed PCB assembly or component placement.

Test Equipment: Drives motion in automated inspection or calibration systems.

Textile Machinery: Controls looms, knitting machines, or cutting systems, maintaining consistent operation under load.

Aerospace and Defense: Drives motion in precision equipment like simulators or positioning systems.

Specialized Equipment: Used in laser cutting machines, industrial printers, or test rigs requiring reliable, high-torque control.
