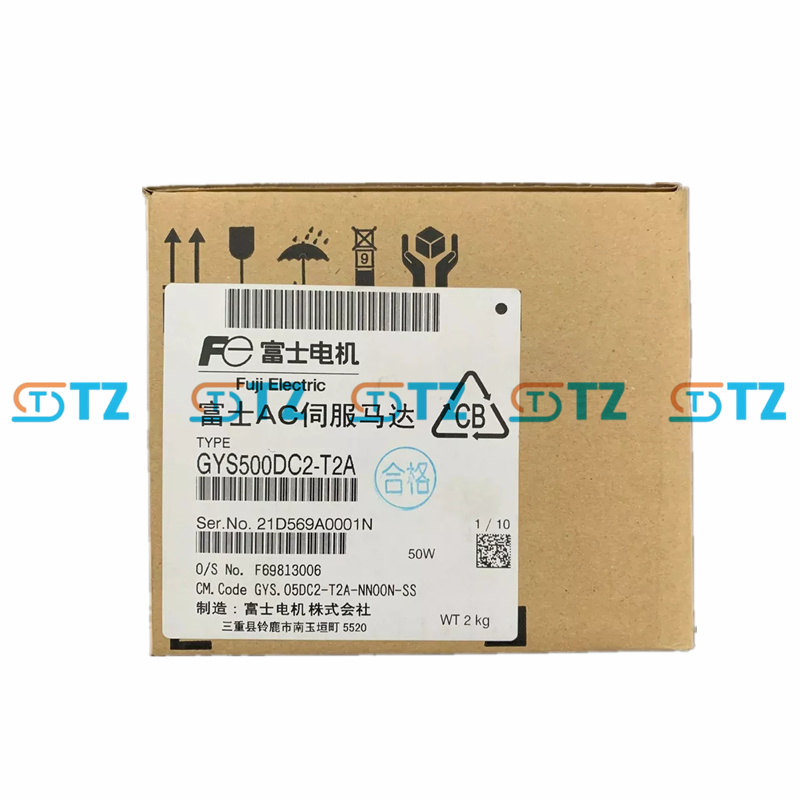

FUJI ELECTRIC GYS500DC2-T2A LOW-INERTIA AC SERVO MOTOR ALPHA5 SERIES

Product Parameters

Rated Power: 50 W (0.05 kW)

Rated Voltage: 200 VAC (single-phase or three-phase, depending on amplifier)

Rated Current: ~0.84 A

Rated Torque: 0.159 Nm

Maximum Torque: ~0.557 Nm (peak)

Rated Speed: 3000 rpm

Maximum Speed: 6000 rpm (standalone); 5000 rpm (with Fuji gearhead)

Rotor Inertia: ~0.0263 × 10⁻⁴ kg·m² (low inertia)

Encoder Type: 20-bit incremental encoder (high resolution for precise feedback)

Protective Rating: IP67 (with compliant connectors)

Cooling Method: Natural cooling

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to 60°C

Humidity: 20% to 80% (non-condensing)

Shaft Configuration: Keyed shaft, no threaded hole (standard for GYS motors ≤0.1 kW)

Functions

High-Precision Positioning: 20-bit incremental encoder provides exceptional resolution, enabling sub-micron accuracy. Ideal for tasks requiring exact motion control.

Rapid Dynamic Response: Low-inertia rotor ensures fast acceleration and deceleration, suitable for high-speed applications. Supports high-frequency pulse inputs for responsive performance.

Energy Efficiency: Optimized magnetic circuit minimizes energy losses, enhancing efficiency. Delivers stable torque across a wide speed range.

Robust Environmental Protection: IP67 rating (with proper connectors) protects against dust and water, suitable for challenging industrial environments. Vibration-resistant design (IMV1 flange, L52 standard).

Flexible Control Options: Supports position, velocity, and torque control modes with compatible Fuji ALPHA5 amplifiers. Compatible with protocols like Modbus or EtherCAT (amplifier-dependent).

Seamless Integration: Keyed shaft (no threaded hole) simplifies connection to couplings or pulleys. Ultra-compact design fits space-constrained setups.

No Brake (Standard): Brake-free design reduces weight and complexity; brake option (T2A-B) available for applications requiring load holding.

Application Scenarios

Industrial Automation:

Robotics: Drives small robotic arm joints for precise, lightweight tasks.

CNC Machinery: Powers auxiliary axes in compact machining centers for accurate positioning.

Packaging Systems: Operates small-scale labeling, sealing, or filling units with high speed.

Electronics Manufacturing:

Pick-and-Place Machines: Supports rapid, precise component placement for small parts.

Dispensing Equipment: Controls accurate adhesive or solder application.

Inspection Systems: Drives motion in compact automated testing or vision systems.

Textile Machinery: Powers components in embroidery or knitting machines, ensuring pattern accuracy.

Medical Devices: Drives mechanisms in compact equipment like diagnostic scanners or small robotic surgical systems.

Logistics Automation: Operates small conveyors or sorting systems for efficient material handling. Used in lightweight AGVs (Automated Guided Vehicles) for precise navigation.

Specialized Equipment: Used in 3D printers, small laser engravers, or test rigs requiring high-precision, low-power actuation.
