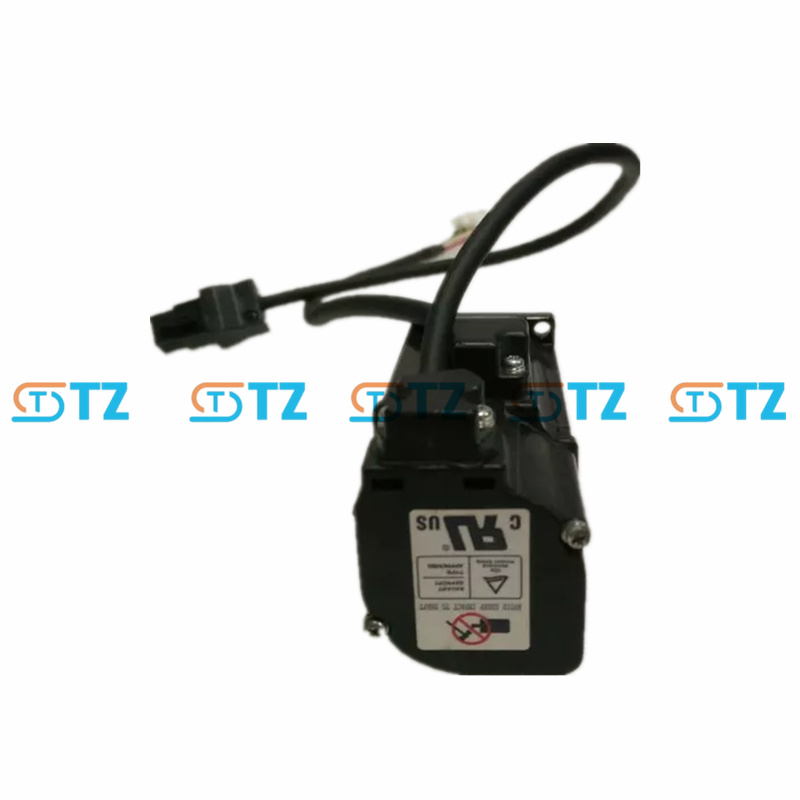

FUJI ELECTRIC GYS101DC2-T2A LOW-INERTIA AC SERVO MOTOR ALPHA5 SERIES

Product Parameters

Rated Power: 100 W (0.1 kW)

Rated Voltage: 200 VAC Rated Current: ~1.4 A

Rated Torque: 0.318 Nm

Maximum Torque: ~1.11 Nm (peak)

Rated Speed: 3000 rpm

Maximum Speed: 6000 rpm (standalone); 5000 rpm (with Fuji gearhead)

Rotor Inertia: ~0.037 × 10⁻⁴ kg·m² (low inertia)

Encoder Type: 20-bit incremental encoder (high resolution for precise feedback)

Protective Rating: IP67 (with compliant connectors)

Cooling Method: Natural cooling

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to 60°C

Humidity: 20% to 80% (non-condensing)

Shaft Configuration: Keyed shaft, no threaded hole (standard for GYS motors ≤0.1 kW)

Recommended Heat Sink for Amplifier: 200 × 200 × 6 mm (aluminum, for rated torque output)

Recommended Load Inertia Ratio: Up to 30 times motor inertia (consult Fuji for specifics)

Functions

High-Precision Positioning: 20-bit incremental encoder delivers exceptional resolution, enabling sub-micron accuracy. Ideal for applications demanding exact motion control.

Rapid Dynamic Response: Low-inertia rotor supports fast acceleration and deceleration, suitable for high-speed tasks. Compatible with high-frequency pulse inputs for responsive operation.

Energy Efficiency: Optimized magnetic design reduces energy losses, enhancing overall efficiency. Maintains stable torque output across a wide speed range.

Robust Environmental Protection: IP67 rating (with proper connectors) ensures resistance to dust and water, suitable for harsh industrial settings. Vibration-resistant (IMV1 flange, L52 standard).

Flexible Control Options: Supports position, velocity, and torque control modes when paired with Fuji ALPHA5 amplifiers. Compatible with communication protocols like Modbus or EtherCAT (amplifier-dependent).

Seamless Integration: Keyed shaft simplifies connection to mechanical loads like couplings or pulleys. Compact size fits space-limited applications.

No Brake (Standard): Brake-free design reduces weight and complexity; brake option available (T2A-B model) for applications needing load holding. Application Scenarios

Industrial Automation:

Robotics: Drives joints in small robotic arms for precise, high-speed movements.

CNC Machinery: Powers feed axes in compact machining centers for accurate processing.

Packaging Systems: Operates labeling, sealing, or filling units with reliable positioning.

Electronics Manufacturing:

Pick-and-Place Machines: Supports rapid and precise component placement.

Dispensing Equipment: Controls accurate glue or solder application.

Inspection Systems: Drives motion in automated testing or vision systems.

Textile Machinery: Powers components in embroidery, knitting, or weaving machines, ensuring pattern accuracy.

Medical Devices: Drives precise mechanisms in compact equipment like diagnostic scanners or surgical robots.

Logistics Automation: Operates small conveyors, sorting systems, or AGV (Automated Guided Vehicle) drives for efficient material handling.

Specialized Equipment: Used in 3D printers, laser engravers, or small test rigs requiring high-precision actuation.
