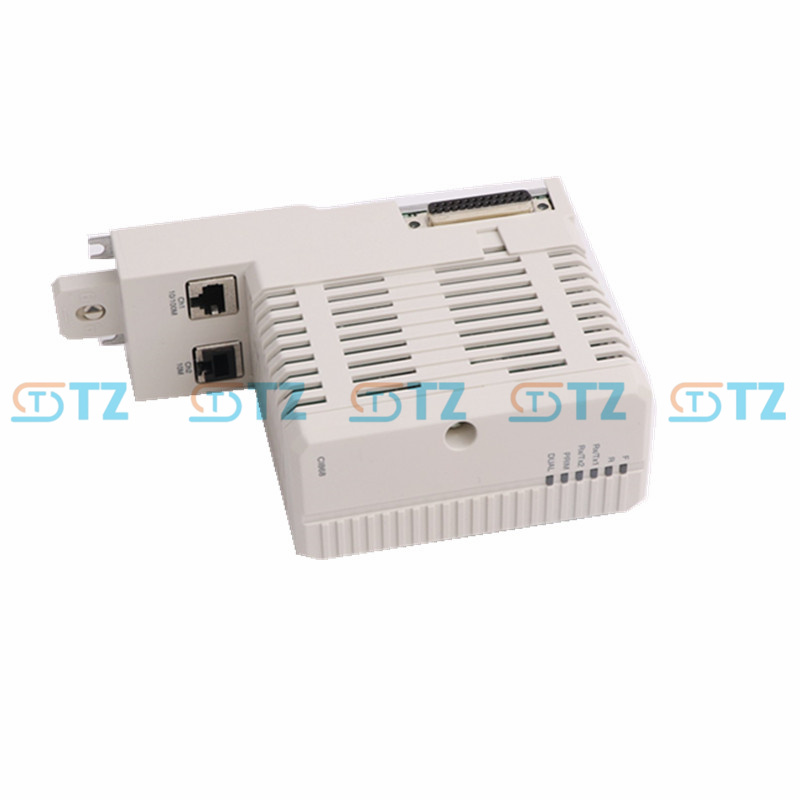

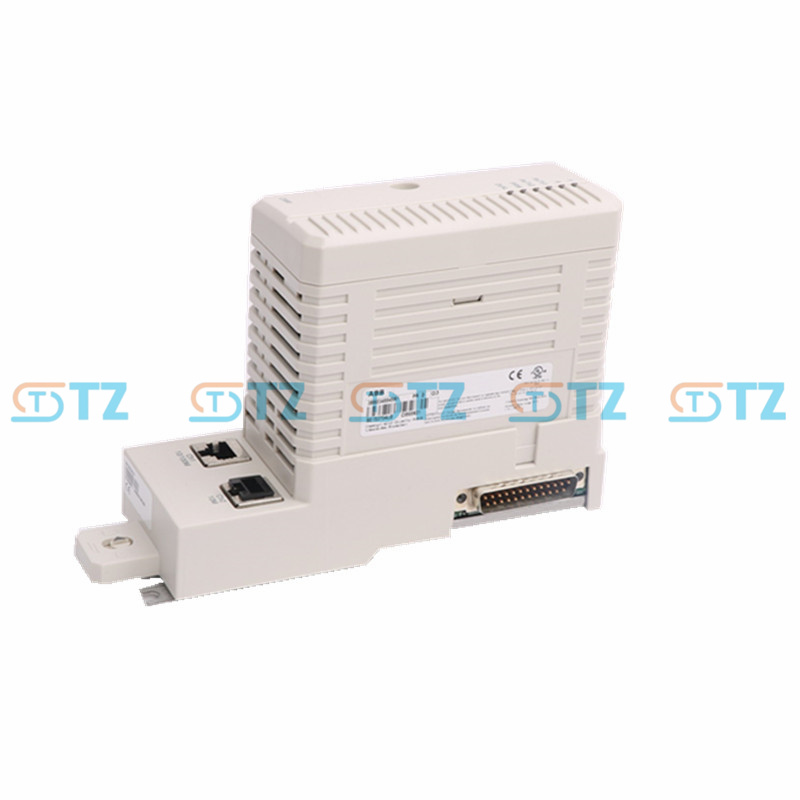

CI868K01 3BSE048845R1 ABB Advant 800xA Communication Module

Main features:

Multi-protocol support: The CI868K01 supports a variety of industrial communication protocols, including Modbus TCP and Ethernet/IP, making it compatible with a variety of industrial automation equipment and systems and adapting to different application requirements.

High-performance data transmission: The module provides high-speed data transmission capability through Ethernet network, supports 10/100/1000 Mbps network connection, and meets the high requirements for bandwidth and real-time performance in industrial control systems.

Remote I/O support: The CI868K01 supports remote connection between the S800 I/O module and the control system through Ethernet networks, which is suitable for use in distributed automation systems, simplifying cabling and improving system scalability.

Compatible with the S800 I/O series: The CI868K01 is fully compatible with the S800 I/O series modules, supports multiple input and output types (digital, analog and smart sensor interfaces), and connects to the main control system via Ethernet networks for data acquisition and process control.

Redundancy support: The CI868K01 provides redundancy support to enhance system reliability. Redundant paths ensure data continuity when a network fault occurs, and are applicable to scenarios that require high reliability and continuity.

Real-time diagnosis and fault detection: Built-in real-time diagnosis to monitor network connection status and device health. If a failure occurs, the system can detect it in time and notify the user, thereby reducing downtime.

Seamless integration with ABB systems: The CI868K01 is compatible with ABB Advant 800xA systems and integrates seamlessly with other ABB control devices and I/O modules, simplifying system design, configuration, installation and maintenance.

Application scenario:

Distributed automation system: CI868K01 is suitable for distributed automation systems that need to connect remote S800 I/O modules to Ethernet networks, and is widely used in large-scale production lines, warehousing logistics, intelligent manufacturing and other fields.

Industrial Internet of Things (IoT) : The CI868K01 is an important part of the Industrial Internet of Things solution, enabling device interconnection through Ethernet networks to support real-time data acquisition, control and remote monitoring.

Process control and real-time monitoring: In the process control and real-time data monitoring system, CI868K01 provides high-speed data transmission and remote I/O connection to ensure efficient and stable operation of the system, which is suitable for chemical, pharmaceutical, food and beverage industries.

Intelligent manufacturing: CI868K01 can be used as a core component of intelligent manufacturing systems, supporting device connectivity, data exchange and analysis through Ethernet networks to help optimize production processes and improve production efficiency.

Building automation and Facility management: In building automation systems, CI868K01 can be used to connect a variety of building equipment (such as air conditioning, lighting, elevators, etc.) to the central control system through Ethernet networks, supporting intelligent management.

Technical specifications (general reference) :

Power requirements: 24V DC, in line with industrial power standards.

Communication protocols: Support Modbus TCP and Ethernet/IP protocols.

Communication rate: Support 10/100/1000 Mbps data transmission rate, to adapt to the bandwidth requirements of different industrial applications.

Operating temperature range: usually 0°C to 60°C, suitable for most industrial environments.

Module size: In line with the standard size of the S800 I/O series module, easy to integrate with other modules.

Advantages:

Redundant network support to ensure high reliability: Redundancy support enables backup paths to automatically take over when the network fails, ensuring continuous system operation and reducing downtime.

High-speed, high-bandwidth data transmission: Support 10/100/1000 Mbps Ethernet data transmission rate, to meet the high bandwidth requirements of large-scale distributed systems, to ensure real-time data exchange and control.

Multi-protocol compatibility: Support Modbus TCP and Ethernet/IP protocols, can be compatible with a variety of control systems, devices and sensors, to adapt to different automation application needs.

Real-time diagnosis and fault detection: The CI868K01 has built-in real-time diagnosis to help quickly identify and resolve network or device faults, reduce maintenance time, and improve system stability.

Flexible system integration and expansion: Seamless integration with ABB Advant 800xA systems makes the CI868K01 a key component in system design and expansion, simplifying system configuration, installation and maintenance.
