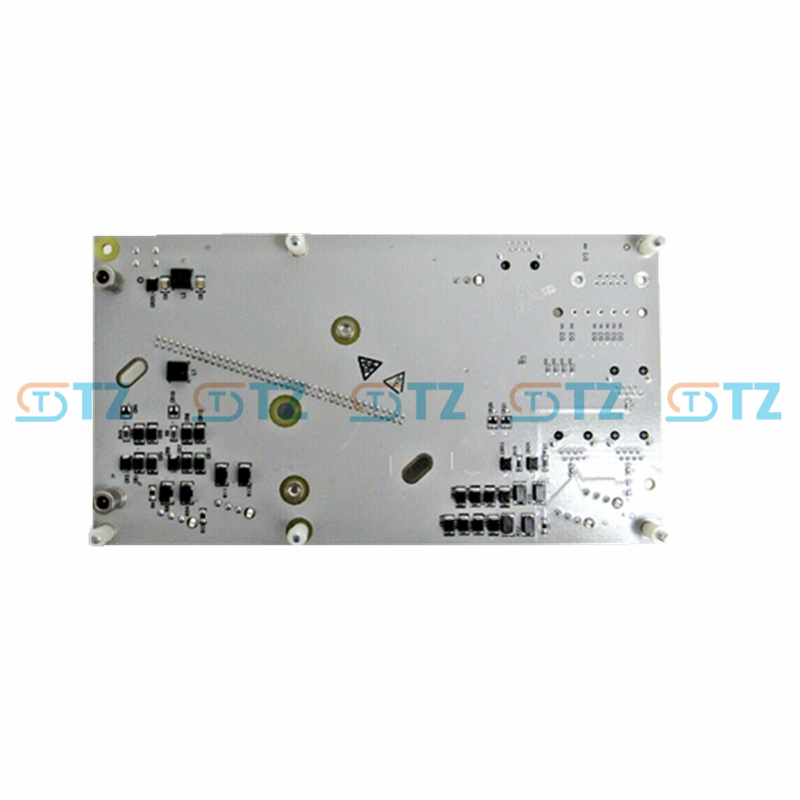

CC-TCNT01 Honeywell Experion PKS C300 DCS Module

The CC-TCNT01 is a thermal resistance (RTD) input module in Honeywell's Experion PKS system that collects temperature signals from thermal resistance sensors and converts them into digital signals for use by control systems. These modules are critical in industrial environments where high precision temperature monitoring is required, and are widely used in petrochemical, power, metallurgy and environmental control.

HS CODE : 8538909200

  • Product No :

    CC-TCNT01
  • Manufacture :

    Honeywell
  • Size (cm) :

    0 * 0 * 0
  • Weight (kg) :

    2
  • Origin :

    USA
  • Warranty :

    12 Month
  • Lead Time :

    Ready Stock
  • Description :

    IOTA

Module introduction

Model: CC-TCNT01

Type: RTD Input Module (RTD Input Module)

Function: The module is designed to receive analog temperature signals from thermal resistance sensors, support a variety of RTD types, and convert the captured signals into digital formats for further processing and use by automated systems.

Key functions and features

Multiple RTD types are supported:

CC-TCNT01 supports a variety of thermal resistance types (such as Pt100, Pt1000, Ni120, etc.), compatible with different temperature measurement equipment, to meet various industrial needs.

High precision temperature measurement:

Provides high precision temperature acquisition capabilities to ensure that the control system can make decisions based on accurate temperature data.

Electrical isolation:

The internal electrical isolation design of the module can effectively prevent the impact of electrical noise and external interference on the signal and improve the stability of the system.

Multi-channel input:

Support for multiple RTD input channels (typically 8 or 16), suitable for large-scale temperature monitoring tasks.

Self-diagnosis function:

The built-in self-diagnosis function can monitor the operating status of the module in real time, helping to quickly detect and eliminate faults and reduce system downtime.

Temperature linearization:

The module has a built-in temperature linearization algorithm, which can convert the nonlinear sensor signal into a linear output, which is convenient for system processing and control.

Application scenario

Industrial process temperature control:

The CC-TCNT01 module is ideal for industrial applications where precise temperature measurement is required, such as chemical reaction processes, smelting furnace temperature control, etc.

Power generation equipment monitoring:

In the power industry, thermal resistors are usually used for temperature monitoring of generators, boilers and other equipment, and CC-TCNT01 module can reliably collect these key temperature data.

Food and Pharmaceutical Industry:

In highly temperature-controlled environments such as food processing and pharmaceutical production, the CC-TCNT01 module can be used to monitor the temperature of a production environment or product.

HVAC System:

It can be used in HVAC system to collect ambient temperature data in real time and adjust indoor temperature and humidity.

System integration

Compatibility:

The CC-TCNT01 is compatible with other modules of Honeywell Experion PKS systems and can be easily integrated into existing control systems.

Extensibility:

The module supports multi-channel design, which is convenient to expand the number of temperature monitoring points and meet the needs of large-scale monitoring.

Diagnosis and monitoring:

With Experion PKS, users can monitor the module's operating status in real time and respond quickly to failures.

Technical Specifications (Example)

Supported RTD types:

Pt100, Pt1000, Ni120, etc., support 2-wire, 3-wire and 4-wire connections.

Number of input channels:

8 or 16 input channels (depending on the module).

Accuracy:

High accuracy, usually within a ±0.1% error range.

Operating voltage:

24V DC or other industry standard voltage.

Electrical isolation:

There is isolation protection between each channel and the system to improve the anti-interference ability of the system.

Operating temperature range:

-20°C to +70°C, suitable for harsh industrial environments.

Response time:

Fast response capability for real-time control applications.

Application case

Petrochemical industry: Monitoring the temperature of reaction vessels or tanks to ensure the safety and stability of chemical processes.

Power industry: Used for temperature monitoring of generator sets to prevent equipment overheating and performance loss.

Pharmaceutical plant: Monitor the temperature of pharmaceutical equipment or storage areas to meet manufacturing regulatory requirements.

Metallurgical industry: Monitoring the temperature of smelting and processing equipment in high temperature environments to optimize production efficiency.
