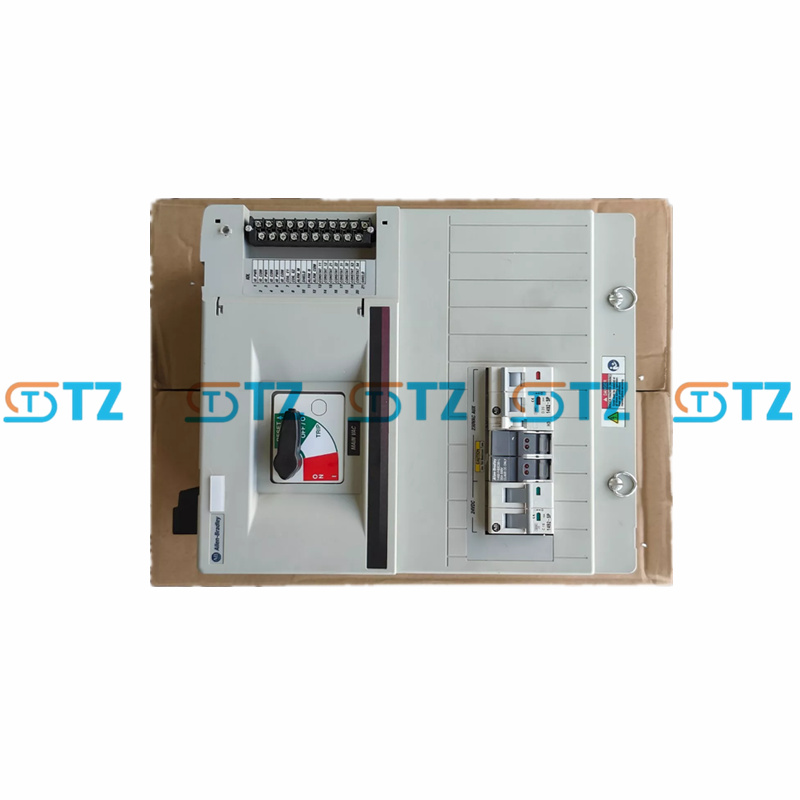

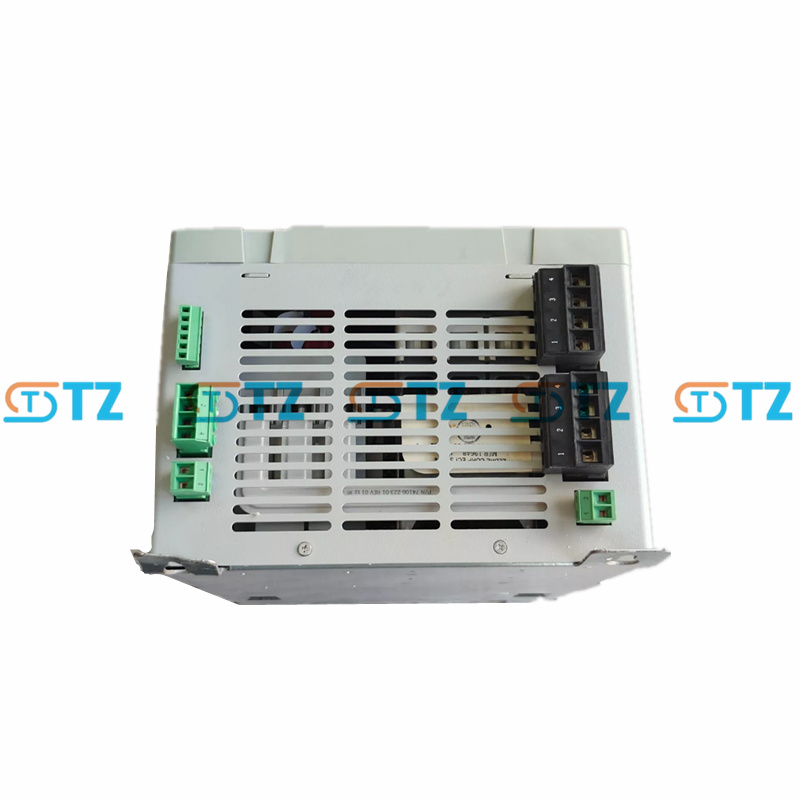

ALLAN BRADLEY 2094-XL75S-C2 Kinetix 6000 SERIES LINE INTERFACE MODULE

Product parameter

Input voltage: 230/460V AC (three-phase, 47-63 Hz)

Rated current: 75 A

Control input: 230V AC, single phase, 50/60 Hz, 11 A

Control output:

230V AC, single phase, 50/60 Hz, 5 A

24V DC, 20 A

Auxiliary power input: 230V AC

Short-circuit current rating: 200,000 A (rms) symmetric

Line filter: Built-in auxiliary/control power line filter, external AC line filter required

Wiring specifications: 14-4 AWG

Dimensions: Approx. 375.9mm (H) × 150mm (W) × 263mm (D)

Weight: About 11 kg

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Relative humidity: 5% to 95% (non-condensing)

Altitude:

1000 m (3281 ft) without derating operation

Derating is required at 3,000 m (9,843 ft)

Certification: CE, UL

Feature

Line interface and protection: provides branch circuit protection and disconnection functions, replacing traditional fuses and circuit breakers, simplifying system design.

Energy management: Built-in DC line filter to reduce electromagnetic interference and ensure system compliance with EMC standards.

Multi-power support: It can power multiple power rails, support 230V AC auxiliary power input and 24V DC control output.

Modular design: Seamless integration with Kinetix series drivers reduces cabling complexity and saves panel space.

Easy installation: Compatible with standard mounting brackets, easy to deploy and maintain.

Application scenario

Manufacturing: Provide stable power support for robot systems and CNC machine tools to improve multi-axis control performance.

Packaging industry: Simplify power allocation and increase production efficiency in high-speed packaging machines and sorting equipment.

Material handling: Support conveyor belts and automated storage systems to ensure the reliability and stability of power distribution.

Printing and textile: EMC compatible power supply in printing presses and textile equipment to ensure smooth operation of equipment.

Automotive industry: Used in automotive assembly lines and test equipment to optimize control cabinet space and wiring design.
