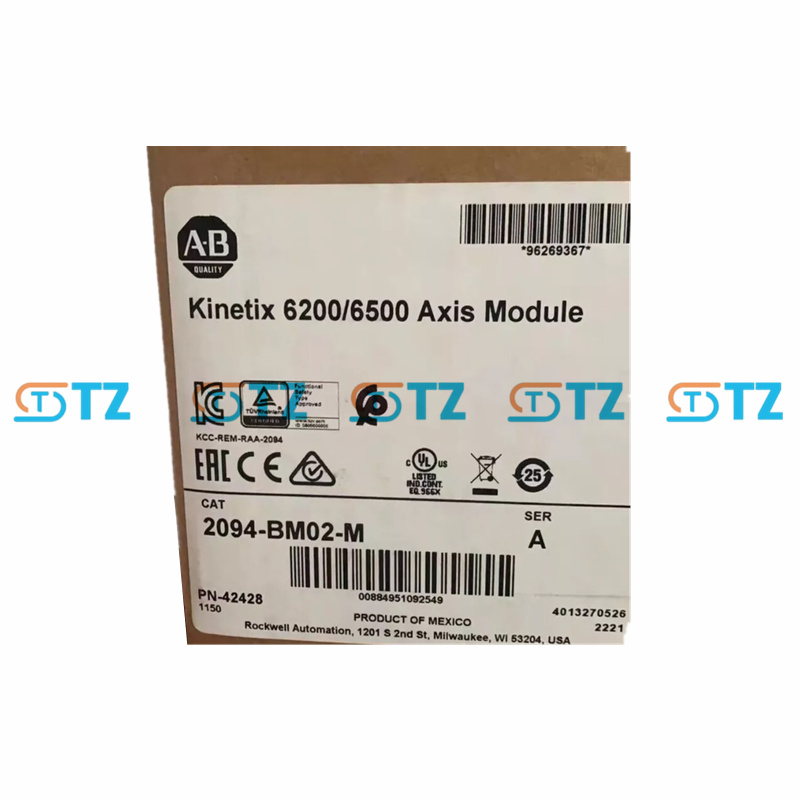

ALLAN BRADLEY 2094-BM02-M Kinetix 6200/6500 SERIES AXIS MODULE
Allen-Bradley 2094-BM02-M is an Axis Module in Rockwell Automation's Kinetix 6200/6500 series, designed for industrial multi-axis motion control systems.
HS CODE : 8538909200
Product No :
ALLAN BRADLEY 2094-BM02-MManufacture :
ALLAN BRADLEYSize (cm) :
33.6*30.2 *7Weight (kg) :
3.18Origin :
USAWarranty :
12 MonthLead Time :
Ready StockDescription :
AXIS MODULEProduct parameter
Input voltage: 400/480V AC (three-phase, 324-528V rms range)
Inverter rated current: 15 A
Continuous output current: 10.3A
Peak current: 14.6A
Continuous output power: 6.6kW
Efficiency: 98%
Short-circuit current rating: 200,000 A (rms) symmetric
Built-in shunt:
Continuous power: 50 W
Peak power: 5.6kW
Shunt resistance: 115 Ω
Bandwidth:
Speed loop: 500 Hz
Current loop: 1300 Hz
Pulse width modulation (PWM) frequency: 4 kHz
Operating temperature: 0°C to 50°C (32°F to 122°F)
Relative humidity: 5% to 95% (non-condensing)
Altitude: 1000 meters without derating, 3000 meters need derating
Feature
Efficient motion control: Supports multi-axis synchronization to provide smooth acceleration and deceleration for highly dynamic applications.
Modular design: Simplified installation and maintenance, compatible with Kinetix 6200/6500 series integrated drive modules.
High reliability: 98% efficiency and 200,000A short circuit protection to ensure stable system operation.
Diagnostic capability: Reduce downtime by quickly locating faults through error message display.
Application scenario
Manufacturing: Multi-axis control for robotic systems and CNC machine tools.
Packaging industry: Fast response and stable operation in high-speed packaging machines.
Material handling: Support complex movement trajectories of conveyor belts and stackers.
Printing and textile: Ensure high accuracy of tension control and synchronous movement.
