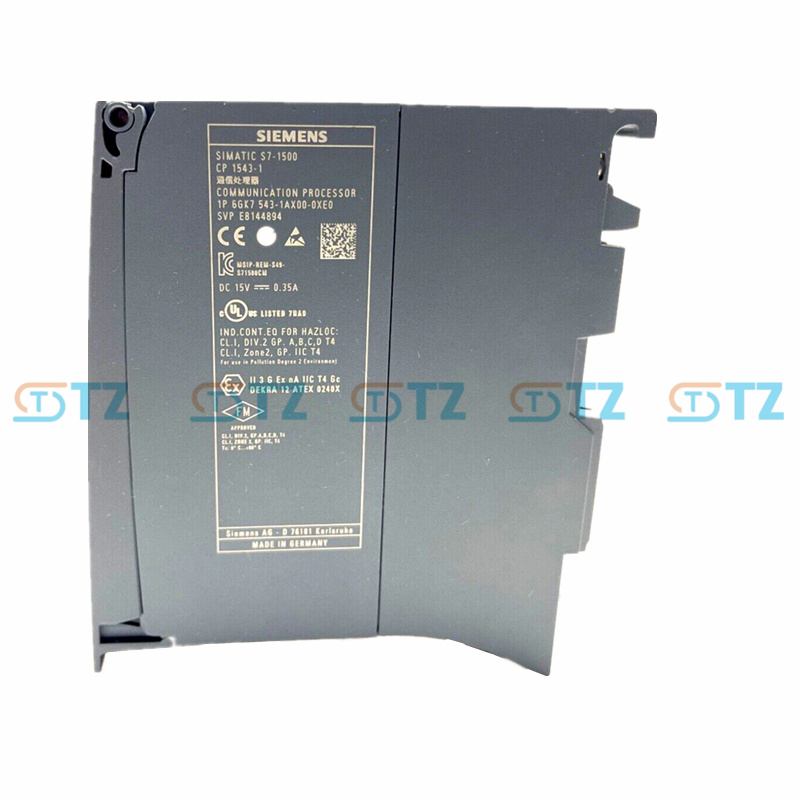

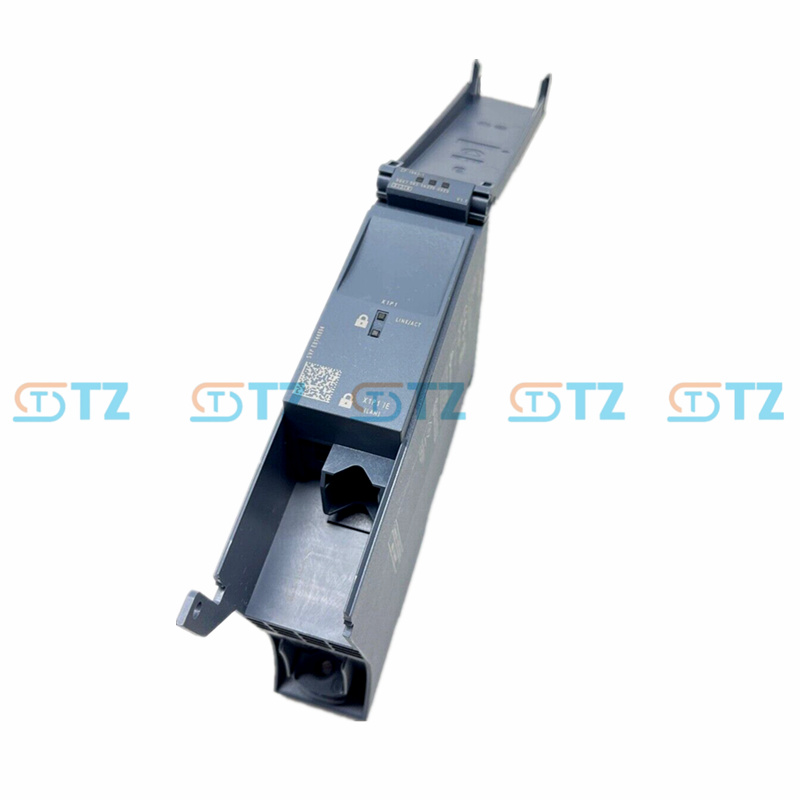

6GK7543-1AX00-0XE0 Siemens SIMATIC S7-1500 Communication Processor

Key Features:

Enhanced Communication Options: The communication processor enables the PLC to support additional communication protocols, including Profinet, Profibus, and other industry-standard communication methods.   It facilitates data exchange between different PLCs, remote I/O modules, human-machine interfaces (HMIs), SCADA systems, and other devices in the automation environment.

High Data Transfer Speed: With high-speed data transfer rates, the CP can handle real-time communication between the S7-1500 PLC and other systems, which is critical in applications where timing and synchronization are crucial.

Multiple Protocol Support: The processor supports multiple industrial communication protocols, making it versatile in various applications.   These protocols include:

Profinet: For high-speed Ethernet-based communication within industrial automation.

Profibus: For connecting remote devices and I/O systems in a factory network.

Industrial Ethernet: Supports Ethernet-based networks for faster communication with different devices.

Serial Communication: Optionally supports serial communication, for integrating legacy devices.

Redundancy Support: It can be configured for redundant communication systems to enhance reliability in mission-critical applications.

Diagnostic Features: Includes diagnostic and status monitoring tools to ensure smooth operation and troubleshoot issues efficiently.   Siemens software tools provide detailed insights into the operation and performance of the CP.

Compact and Modular Design: The 6GK7543-1AX00-0XE0 CP is compact, allowing easy integration into the S7-1500 PLC.   It does not require a separate rack, providing a more streamlined solution in industrial environments.

Technical Specifications:

Part Number: 6GK7543-1AX00-0XE0

Type: Communication Processor (CP)

Series: SIMATIC S7-1500

Supported Communication Protocols:

Profinet (Industrial Ethernet)

Profibus (Fieldbus communication)

Modbus TCP (for connecting to non-Siemens devices)

Industrial Ethernet for high-speed communication with other automation systems and devices.

Operating Temperature Range: 0°C to 60°C

Power Supply: Powered by the S7-1500 PLC system

Mounting: Directly mounts onto the PLC rack or backplane bus system

Communication Ports: Typically features Ethernet and RS-232/RS-485 ports for industrial communication.

Integration: Fully integrates with Siemens TIA Portal for configuration, programming, and monitoring.

Benefits:

Scalability: Ideal for scalable industrial automation systems.   The processor can connect a wide range of devices in large systems.

Real-Time Performance: High-speed, low-latency communication ensures real-time control and monitoring.

Reliability and Stability: The CP is built for high-reliability performance in industrial settings where downtime is costly.

Ease of Integration: Easily integrates with existing Siemens automation systems using the TIA Portal software suite.

Cost-Effective: Extends the capabilities of the S7-1500 without needing additional separate communication devices, reducing system complexity and cost.

Applications:The 6GK7543-1AX00-0XE0 communication processor is commonly used in a wide range of industrial automation applications, including:

Factory Automation: Connecting various production lines, devices, and control systems within a manufacturing plant.

Process Control: Enabling communication between distributed control systems (DCS), PLCs, and field devices in process industries like chemicals, pharmaceuticals, and oil & gas.

Building Automation: For communication between automation controllers in building management systems, such as HVAC, lighting, and security systems.

Energy Management: Integrating with energy meters, load management systems, and renewable energy sources in modern energy distribution networks.

Machine Integration: Facilitating communication between PLCs and machines for assembly lines, material handling, and robotic systems.

Compatibility:

PLC System Compatibility:Siemens S7-1500 PLC family (e.g., S7-1511, S7-1513, S7-1515).

The processor can be mounted directly onto the PLC's backplane and connects to the CPU via a high-speed data bus.

Software Compatibility:Fully compatible with Siemens TIA Portal, which provides integrated tools for configuration, programming, and diagnostics.Configuration and programming are made easy with the TIA Portal, allowing users to define communication channels, set up devices, and manage network parameters.

Network Compatibility:Profinet and Profibus are the main communication standards supported, along with optional Ethernet-based and serial communication protocols.
