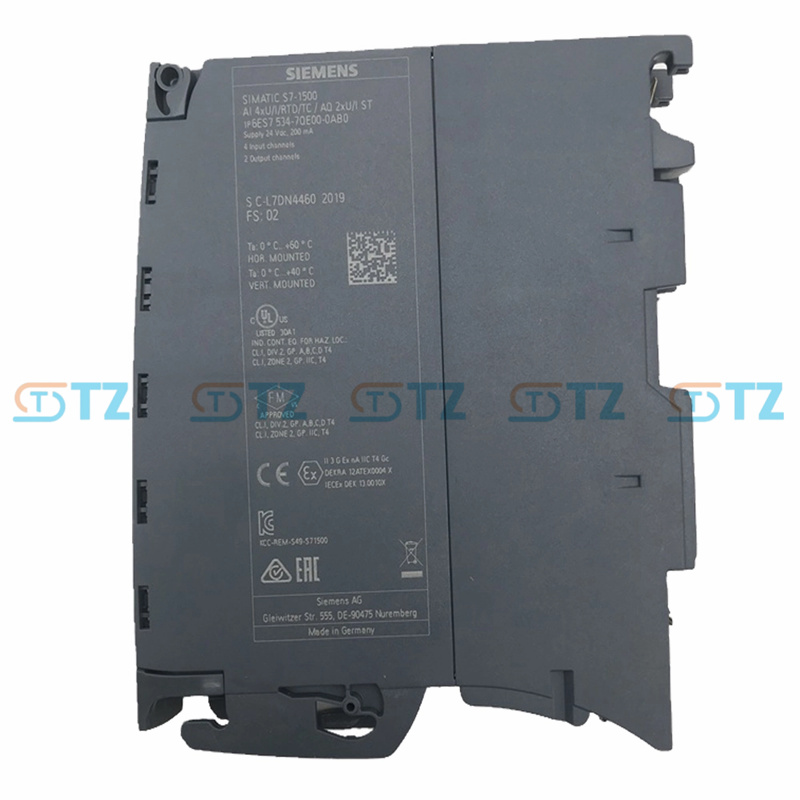

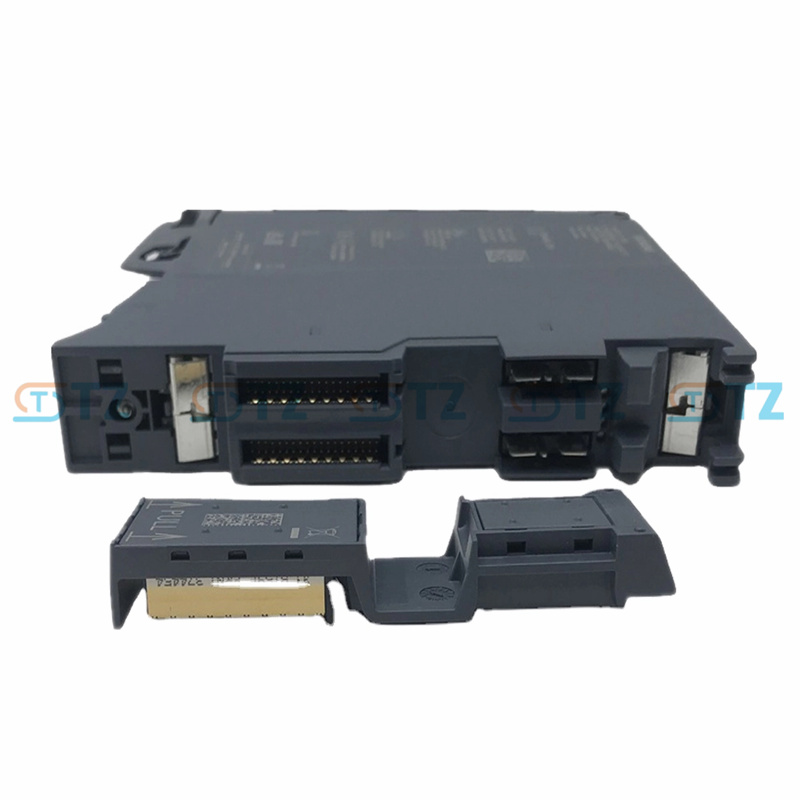

6ES7534-7QE00-0AB0 Siemens SIMATIC S7-1500 Analog I/O Module

Main functions and features

Multi-channel analog input and output: Multiple analog input and output channels are available, supporting 0-10V and 4-20mA signal types, enabling the acquisition and precise control of analog signals from different sensors.

High-precision signal processing: The module provides high-precision analog signal processing to ensure the accuracy of signal acquisition and output, and is suitable for industrial applications requiring high precision, such as process control and monitoring.

Flexible signal configuration: Users can choose input and output signal types according to actual needs, the module supports a variety of input/output configurations, and can be compatible with a variety of devices and sensors.

Real-time monitoring and diagnosis: The TIA Portal configuration tool supports real-time signal monitoring and fault diagnosis, helping users discover and resolve system problems in a timely manner.

Strong anti-interference ability: The module has a strong anti-electromagnetic interference ability, and can operate stably in a noisy industrial environment to ensure the reliability of the system.

Technical specification

Product Number: 6ES7534-7QE00-0AB0

Applicable PLC: Siemens S7-1500 series

Input signal type: Support 4-20mA and 0-10V input signals, suitable for a variety of types of sensors, such as temperature, pressure, flow sensors, etc.

Output signal type: Support 4-20mA and 0-10V output signals, suitable for a variety of actuators, such as regulating valves, solenoid valves, governors, etc.

Number of input/output channels: Multiple analog input and output channels are provided to support the application requirements of large-scale systems.

Power supply: The module is powered through the S7-1500 PLC backplane, simplifying power configuration and eliminating the need for additional power equipment.

Operating temperature range: The operating temperature range is 0°C to 60°C, suitable for a wide range of industrial applications.

Diagnosis function: The TIA Portal tool is used for real-time diagnosis to discover and rectify system faults in a timely manner, ensuring efficient system operation.

Application scenario

Process control: suitable for controlling important parameters in the production process, such as temperature, pressure, flow, etc., to ensure the stability and accuracy of the production process.

Environmental monitoring: Used to collect environmental parameters (such as temperature, humidity, etc.) and provide real-time feedback to ensure the control and monitoring of environmental conditions.

Automated production line: In the automated production process, the module collects and processes analog signals to achieve equipment control, condition monitoring and automatic regulation.

Test and measurement: Used in laboratory test and measurement applications to provide accurate analog signal acquisition and output to meet high precision requirements.

Equipment monitoring and diagnosis: Through real-time signal acquisition and control, the module helps to monitor the operating status of the equipment, discover and diagnose faults in time, and ensure the normal operation of the equipment.

Advantage

High-precision signal processing: The module provides accurate analog signal processing capabilities for industrial applications that require high signal accuracy, such as process control and environmental monitoring.

Flexible input/output configuration: The module supports multiple signal configurations and can flexibly adapt to different application scenarios and device requirements.

Strong anti-interference ability: industrial design, with strong anti-electromagnetic interference ability, can operate stably in complex industrial environments.

Real-time monitoring and diagnosis: The TIA Portal configuration tool supports real-time monitoring and fault diagnosis to improve system reliability and stability.

Modular design and scalability: Compatible with other S7-1500 PLC series modules, with flexible scalability to adapt to growing automation needs.
