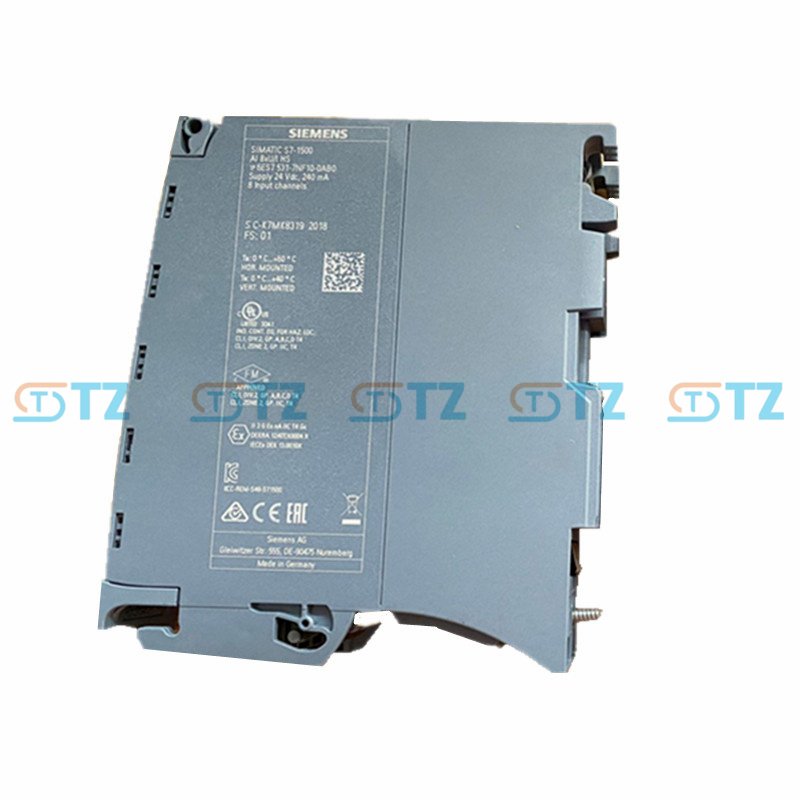

6ES7531-7NF10-0AB0 Siemens SIMATIC S7-1500 Analog I/O Module

Main functions and features

Multi-channel analog input and output: Multiple analog input and output channels support common analog signal types, such as 4-20mA and 0-10V, to meet a variety of industrial control needs.

High-precision analog signal acquisition and control: The module supports high-precision analog signal acquisition and output to ensure accurate control and signal feedback in the process, which is suitable for industrial applications requiring high precision.

Flexible signal configuration: Users can flexibly select input and output signal types according to actual application requirements, support a variety of signal types, easy to be compatible with a variety of sensors and actuators.

Real-time monitoring and diagnosis: The TIA Portal configuration tool enables real-time signal monitoring and fault diagnosis, helping users quickly discover and resolve problems.

Anti-electromagnetic interference design: The module adopts industrial-grade design and has strong anti-electromagnetic interference capability to ensure stable operation in complex industrial environments.

Technical specification

Product Number: 6ES7531-7NF10-0AB0

Applicable PLC: Siemens S7-1500 series

Input signal type: Support 4-20mA and 0-10V input signals, suitable for a variety of sensors, such as temperature, pressure sensors, current, voltage, etc.

Output signal type: Support 4-20mA and 0-10V output signals, suitable for various actuators, regulating valves and other equipment connection, accurate control.

Number of input/output channels: Multiple input and output channels can be provided to simultaneously process a variety of analog signals and adapt to the needs of large-scale industrial automation systems.

Input voltage/current range: Input signals support 0-10V or 4-20mA, suitable for common sensors and signal sources.

Output voltage/current range: Output signals support 0-10V or 4-20mA, suitable for controlling regulating devices and actuators.

Power Supply: The module is powered through the S7-1500 PLC backplane, simplifying power configuration and reducing external power requirements.

Operating temperature range: The operating temperature range is 0°C to 60°C, suitable for a wide range of industrial applications.

Diagnosis function: The TIA Portal provides real-time monitoring and fault diagnosis to help discover and handle faults in a timely manner, ensuring stable system running.

Application scenario

Process control: For the precise control of temperature, pressure, flow and other key process parameters to ensure stability and accuracy in the industrial production process.

Automated production line: In the automated production process, the module can be connected with various sensors (such as temperature sensors, pressure sensors) to achieve accurate real-time data acquisition and control.

Test and measurement: Used for signal acquisition and output in laboratory or production testing to ensure high precision and accuracy of measurement results, suitable for high-precision testing requirements.

Environmental monitoring: In the environmental monitoring system, the module can collect signals such as temperature and humidity, and provide real-time feedback to ensure the stable control of the environment.

Machine status monitoring: The module can be connected to the machine equipment, by collecting analog signals (such as current, temperature, etc.), monitor the running status of the machine, and provide maintenance tips.

Advantage

High-precision signal processing: The module supports high-precision analog signal acquisition and output, which is suitable for industrial applications requiring high precision, such as process control and automated production.

Flexible input/output configuration: supports a variety of input/output signal types and can adapt to different types of sensors and actuators to meet a wide range of application needs.

Strong anti-interference ability: The module has good anti-electromagnetic interference ability and can work stably in a noisy industrial environment.

Real-time diagnosis and monitoring: The TIA Portal provides real-time diagnosis and monitoring functions to help users discover and resolve problems during system operation.

Modular design and scalability: Seamless compatibility with other S7-1500 PLC series modules enables flexible expansion of system functions to meet changing automation needs.

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.

Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.

ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.

GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.

Honeywell - Experion® PKS; ControlEdge™ HC900; etc.

Many Available just wait for you, feel free to ask to get better deal!!!
