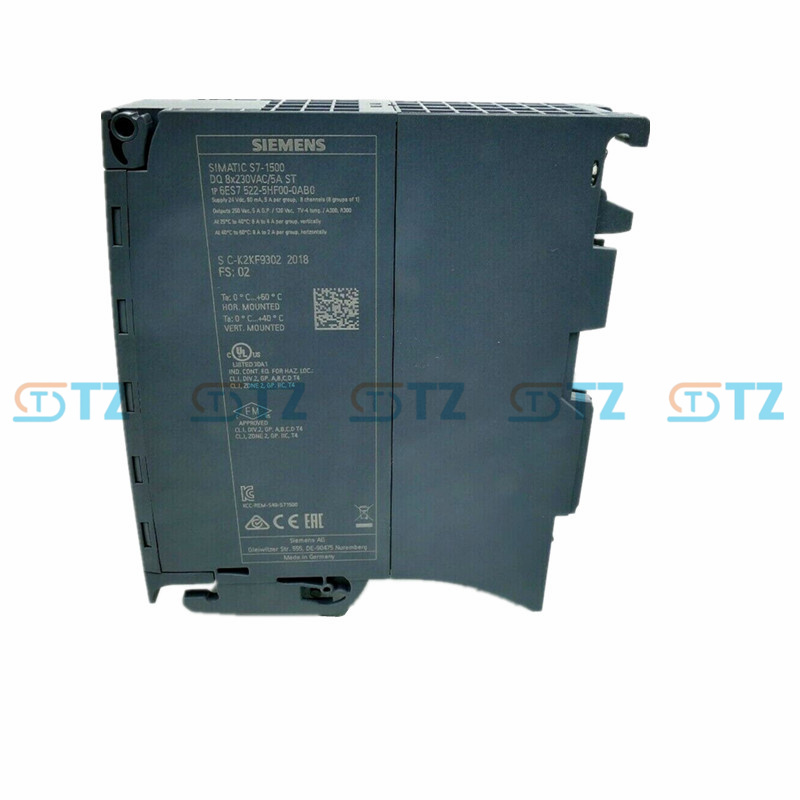

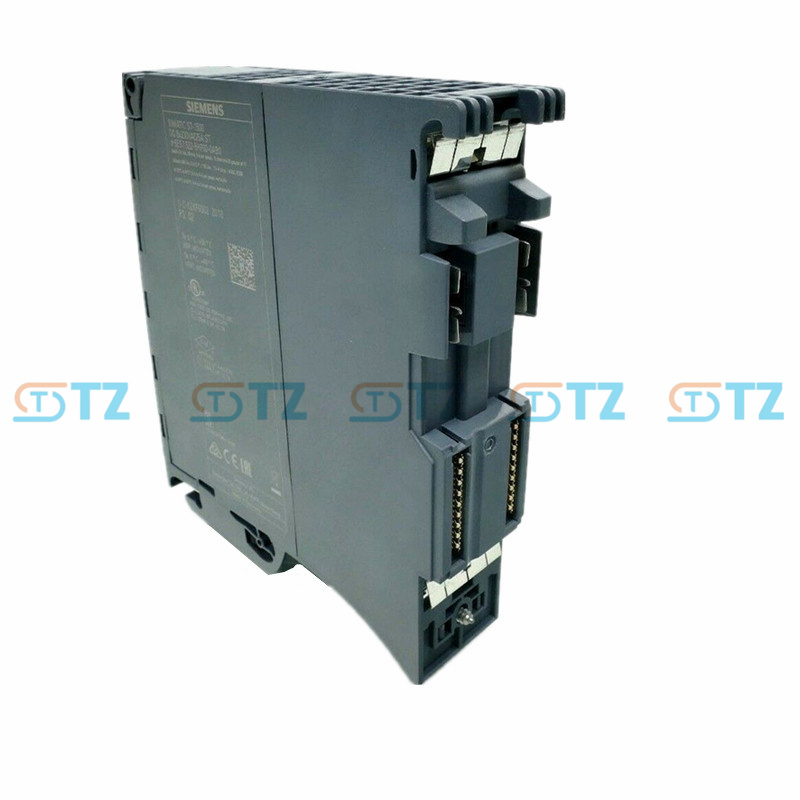

6ES7522-5HF00-0AB0 Siemens SIMATIC S7-1500 Digital I/O Module

Main functions and features

Multiple digital input/output channels: Provides multiple 24V DC switching input and output channels to support a variety of sensors and actuators such as proximity switches, buttons, relays, control valves, etc.

High reliability and stability: The module is designed with industrial grade, has excellent anti-interference ability, can operate stably in harsh industrial environment, and is suitable for various automation control applications.

Modular and flexible scalability: Compatible with other S7-1500 PLC series modules, it is easy to extend the functions of the system to meet the needs of larger automation systems.

Real-time data processing and diagnosis function: With the TIA Portal tool, the module can monitor the input and output status in real time, and provide fault diagnosis function to help users quickly troubleshoot and solve problems.

Compact design and high integration: The module has a high degree of integration, saves space, and supports multiple inputs and outputs simultaneously, reducing cabling complexity.

Technical specification

Product Number: 6ES7522-5HF00-0AB0

Applicable PLC: Siemens S7-1500 series

Input signal type: Support 24V DC switching input signal, can be compatible with various types of sensors (such as proximity switches, buttons, sensors, etc.).

Output signal type: Support 24V DC switching output signal, used to control a variety of actuators, such as solenoid valves, motors, relays, alarm devices, etc.

Number of input/output channels: Multiple input and output channels are available to meet the needs of medium to large industrial systems.

Power supply: The module is powered through the S7-1500 PLC backplane, which eliminates the need for external power equipment and simplifies system design.

Operating temperature range: Operating temperature range is 0°C to 60°C, suitable for a wide range of industrial environments.

Diagnosis: Supports real-time monitoring and fault diagnosis in the TIA Portal, helping users quickly discover and resolve problems to ensure stable system running.

Application scenario

Automatic production line: In the production line, the module is used to collect the switching signal of the sensor, such as limit switch, proximity switch, conveyor status sensor, etc., and control the actuator (such as solenoid valve, motor, etc.) for automatic control.

Equipment monitoring and control: used for digital input/output control of equipment, real-time monitoring of equipment status and switching control, such as starting or stopping mechanical equipment, electrical equipment, etc.

Digital signal acquisition system: used to collect various switching digital signals to help monitor industrial equipment, environmental parameters, etc.

Alarm system: In an automated system, the module is able to receive signals from safety sensors and trigger alarm signals or control other safety devices through the output channel.

Industrial control system: provide digital signal input and output interface, connect switching equipment, equipment status monitoring and control, suitable for a variety of industrial control systems.

Advantage

High reliability: The module is designed with high quality industrial grade components to operate stably in complex and harsh industrial environments.

Flexible scalability: Compatible with other modules of the S7-1500 PLC series, it is easy to expand the system functions and adapt to the automation needs of different scales and complexity.

Real-time data processing: provides high-speed digital signal processing capabilities, suitable for real-time signal acquisition and control, to ensure the efficient operation of automated production lines.

Compact design: Compact module design, high integration, small space, simplified equipment wiring.

Integrated diagnosis: The TIA Portal provides real-time data monitoring and fault diagnosis to improve system reliability and maintenance efficiency.
