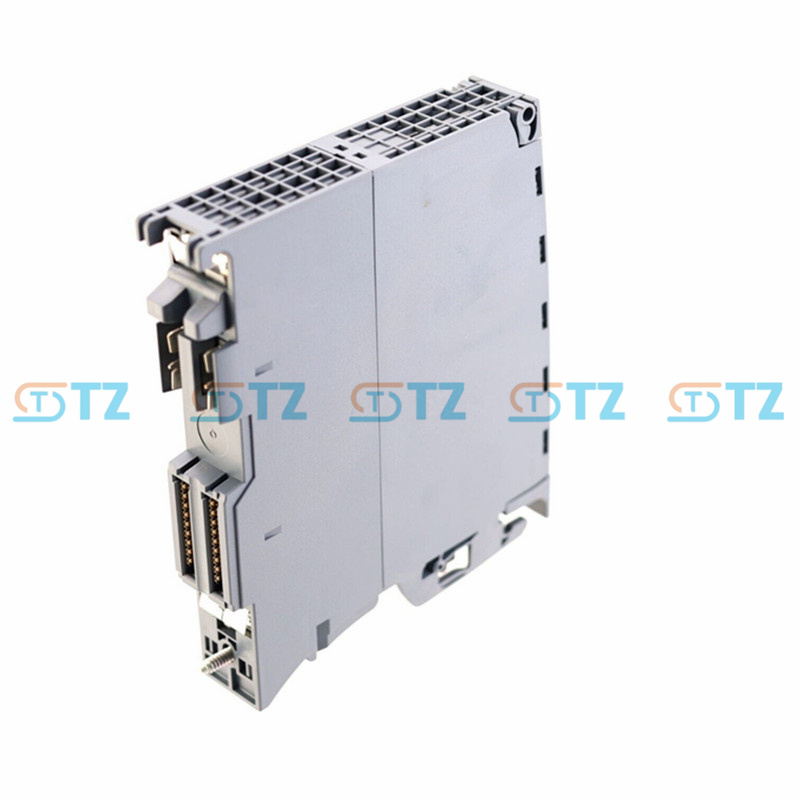

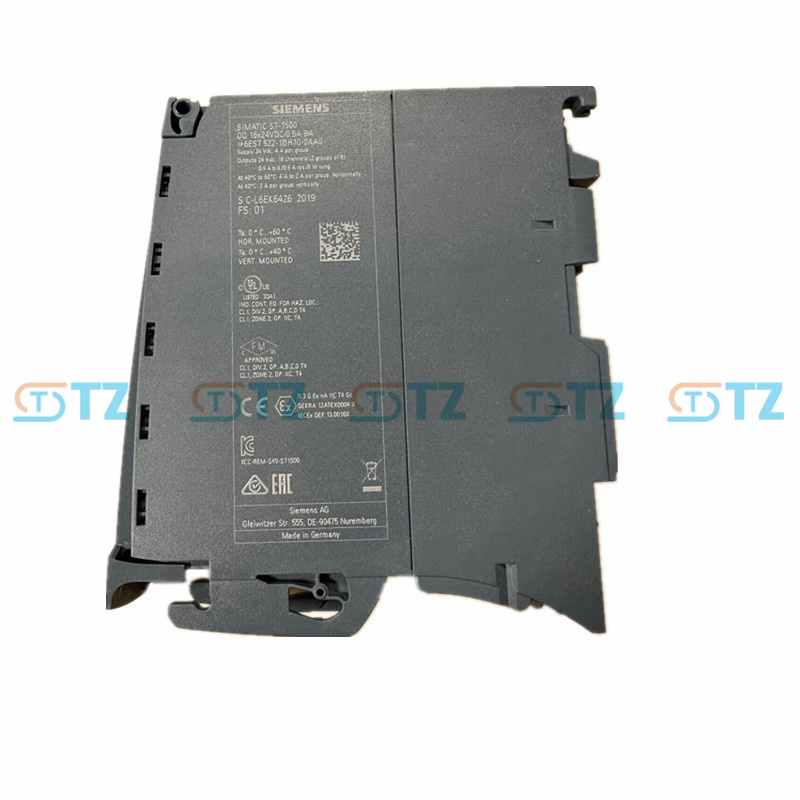

6ES7522-1BH10-0AA0 Siemens SIMATIC S7-1500 Digital I/O Module
The 6ES7522-1BH10-0AA0 digital input/output module is one of the expansion modules of the Siemens S7-1500 PLC series, specially designed for processing digital signals. The module supports 24V DC digital input and output, and can be connected with various industrial sensors, actuators, switches and other equipment to achieve signal acquisition and control. In combination with other modules and systems in the S7-1500 series, the module provides stable and efficient automated control and monitoring.
HS CODE : 8538909200
Product No :
6ES7522-1BH10-0AA0 6ES75221BH100AA0Manufacture :
SiemensSize (cm) :
15.1 * 20.4 * 3.7Weight (kg) :
0.302Origin :
GermanyWarranty :
12 MonthLead Time :
Ready StockDescription :
I/O ModuleMain functions and features
Digital input and output channels: Provide multiple digital input and output channels, support 24V DC voltage input and output, and can handle a variety of digital devices.
High response speed: The module can respond to digital signal input in real time, and quickly output control signals, suitable for high-speed industrial applications.
Flexible scalability: The module can be used in conjunction with other S7-1500 series modules to flexibly expand the input/output functions of the system to adapt to different scale automation control systems.
Support a variety of industrial equipment: support and a variety of industrial equipment (such as sensors, switches, actuators, etc.) connection to achieve digital signal acquisition and processing.
High reliability: Industrial-grade design, strong anti-electromagnetic interference capability, suitable for operation in complex environments.
Real-time diagnosis and troubleshooting: Supports real-time diagnosis and provides detailed module status and fault information through the TIA Portal to help users quickly locate and rectify faults.
Modular design: The module is integrated through the backplane bus of the S7-1500 series to facilitate the configuration and upgrade of the system.
Technical specification
Product Number: 6ES7522-1BH10-0AA0
Applicable PLC: Siemens S7-1500 series
Input Type: Digital input (24V DC)
Output Type: Digital output (24V DC)
Input voltage range: 24V DC
Output voltage range: 24V DC
Input current range: meets the input requirements of conventional industrial sensors
Output current range: Load drivers for conventional industrial equipment (such as actuators, relays, etc.)
Number of channels: Multiple input and output channels can be provided to expand the input and output capacity of the system according to actual needs.
Power supply: Power is supplied through the S7-1500 PLC backplane, avoiding the configuration and management of additional power supplies.
Operating temperature range: 0°C to 60°C, suitable for a variety of industrial environments and application scenarios.
Diagnosis function: Supports real-time diagnosis and error information, helping users accurately detect system status and fault information.
Size and installation: The module is standard S7-1500 size for easy installation and configuration, and supports standard DIN rail mounting.
Application scenario
Industrial automation control: used for production line control, robot control, machine equipment status monitoring and control, support real-time digital signal input and output.
Equipment monitoring and management: In the monitoring system, sensors and actuators are connected, and equipment management and maintenance are realized through real-time processing of digital signals.
Intelligent manufacturing: In the intelligent manufacturing system, the precise control and data acquisition of production equipment are achieved through digital input and output modules.
Safety control system: Used in industrial safety control system, real-time monitoring equipment status through digital input and output signals to ensure the safety of the production process.
Energy management and monitoring: In the energy monitoring system, the switching status of the equipment is monitored in real time, and the equipment is controlled through the digital output signal.
Advantage
Multi-channel support: provides multiple digital input and output channels, supports multiple devices to connect and operate at the same time, and has strong scalability.
High reliability: It has strong anti-interference ability and stability, and can continue to operate in complex industrial environments.
Fast response: Supports fast digital signal response for high-speed and real-time control applications.
Easy configuration and diagnosis: With the TIA Portal configuration and diagnosis tool, users can easily configure, debug, monitor, and maintain the system.
High compatibility: Compatible with other modules and devices of the S7-1500 series, flexible integration and expansion.
