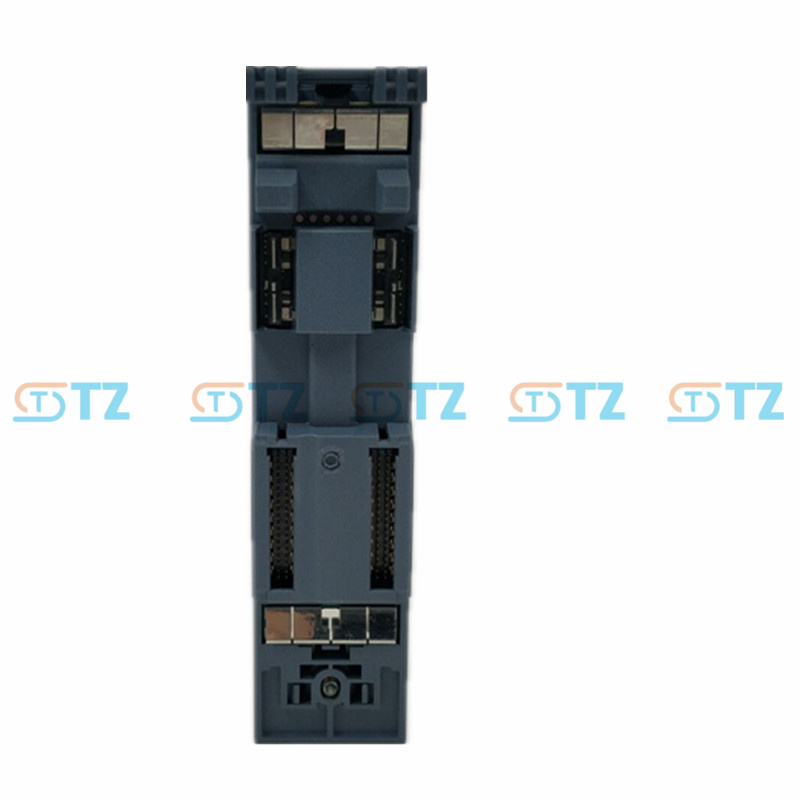

6ES7522-1BF00-0AB0 Siemens SIMATIC S7-1500 Digital I/O Module

Main functions and features

Digital input/output channels: Multiple 24V DC switching input and output channels are available for a variety of industrial equipment and sensors to support digital signal acquisition, processing and control.

High reliability and stability: The module design has a good anti-interference ability, in the complex industrial environment, can still work stably, adapt to a variety of high frequency switching application needs.

Integration and modular design: 6ES7522-1BF00-0AB0 can be easily integrated with other modules in the S7-1500 PLC series, and the modular design makes it have good scalability in the system.

Real-time monitoring and diagnosis: With the TIA Portal tool, users can monitor real-time data, check module input and output status, and discover and resolve potential problems in a timely manner.

Compact and efficient design: The compact module design saves space and integrates multiple input and output channels simultaneously, reducing cabling and installation complexity.

Technical specification

Product Number: 6ES7522-1BF00-0AB0

Applicable PLC: Siemens S7-1500 series

Input signal type: Support 24V DC switch input, suitable for a variety of digital sensors, such as proximity switches, buttons, limit switches, etc.

Output signal type: Support 24V DC switching output, used to control a variety of digital actuators, such as relays, solenoid valves, motors, etc.

Number of input/output channels: Multiple input and output channels are available to support medium to large industrial automation systems.

Power supply: The module is powered by the S7-1500 PLC backplane, which eliminates the need for external power supply configuration and simplifies device wiring and cabling.

Operating temperature range: Operating temperature range is 0°C to 60°C, suitable for a variety of industrial environments.

Diagnosis function: The module supports real-time monitoring and fault diagnosis functions in the TIA Portal tool, which helps users quickly discover and handle system problems.

Application scenario

Automated production lines: In automated production lines, modules are used to collect switching signals from sensors in real time and to control actuators such as solenoid valves, relays, conveyor belts, etc.

Equipment monitoring and control: Digital input/output control for industrial equipment, such as equipment status monitoring, starting or stopping motors and other control tasks.

Digital signal acquisition system: In the digital signal acquisition system, it is used to collect status signals from sensors, switches and other devices for data processing and system control.

Alarm system: In the automatic alarm system, the equipment status signal is collected to trigger the alarm or control the response action, such as starting the emergency braking system.

Industrial control system: provides digital signal input and output interfaces, connects switching equipment, monitors and controls equipment status, and is widely used in various industrial control systems.

Advantage

High reliability and stability: The module design has good anti-interference ability, stable operation in complex environments, to ensure the efficient operation of industrial systems.

Flexible scalability: Compatible with other modules of the S7-1500 PLC series, it supports modular expansion and facilitates system scale expansion.

Efficient data processing: high-speed digital signal processing capability to ensure real-time control and monitoring.

Compact design: Compact design, space saving, easy integration into a variety of automated control systems.

Integrated diagnosis function: Supports real-time monitoring and fault diagnosis through the TIA Portal to ensure long-term stable system operation.
