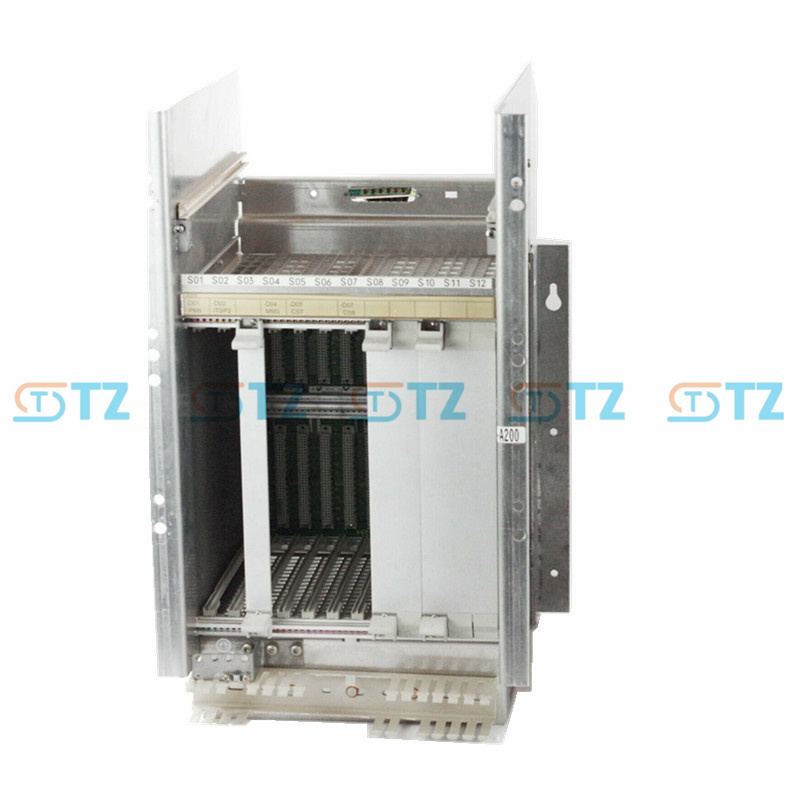

6DD1682-0BC4 Siemens SIMADYN D SUBRACK

6DD1682-0BC4 Details:

Model and series:

Model: 6DD1682-0BC4

Series: SIMADYN D

Type: SUBRACK

Functions and Uses:

Module mounting bracket: Used to install and secure various control and driver modules of the SIMADYN D series, such as CPU, power module, I/O module, etc.

Provide stable support: Provide structural support and connection points to ensure that each module is not affected by external vibration during operation and maintain the stability of the electrical connection.

Efficient heat dissipation: helps heat dissipation, avoids overheating of the system, and keeps the temperature of the module stable during operation.

Technical features:

High reliability design: The sub-frame design is robust and adaptable to harsh industrial environments to ensure long-term stable operation of the module.

Modular design: Support a variety of module combination and expansion, flexible configuration of system functions.

High-density installation: The ability to accommodate multiple modules helps to save space and improve system integration.

Compatibility:

Compatible with SIMADYN D Series: Compatible with all kinds of driver and control modules in SIMADYN D series, such as CPU module of 6DD1600 series, power module of 6DD1683 series, etc.

Standardized interface: Provides standardized interfaces and mounting points for easy integration with other industrial automation equipment.

Installation and maintenance:

Mounting method: The sub-frame is usually fixed in the control cabinet or electrical distribution box by DIN rail or other standard mounting method.

Maintenance: Periodically check the fixing of electrical connections and supports to ensure stable module installation and avoid faults caused by loose or poor contact.

Dimensions and Specifications:

Size: The exact size will vary based on the actual SIMADYN D system configuration and number of modules, and usually fits common industrial module sizes.

Installation space: Ensure sufficient space to accommodate multiple modules and maintain good ventilation and heat dissipation conditions.

Application scenario:

Industrial automation systems: Used in power, automated production lines, robot control and other fields to ensure the effective integration of the modules of the SIMADYN D system.

Drive control system: Suitable for various drive control applications, such as motor control, electric transmission system, etc.

Others:

Environmental resistance: Adapt to various industrial environments, with strong anti-interference and resistance to high temperature, humidity and other capabilities.

Safety: The sub-setup timing takes into account the electrical safety of the module to avoid safety problems such as electrical short circuit or fire caused by equipment failure.

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.

Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.

ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.

GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.

Honeywell - Experion® PKS; ControlEdge™ HC900; etc.

Many Available just wait for you, feel free to ask to get better deal!!!
