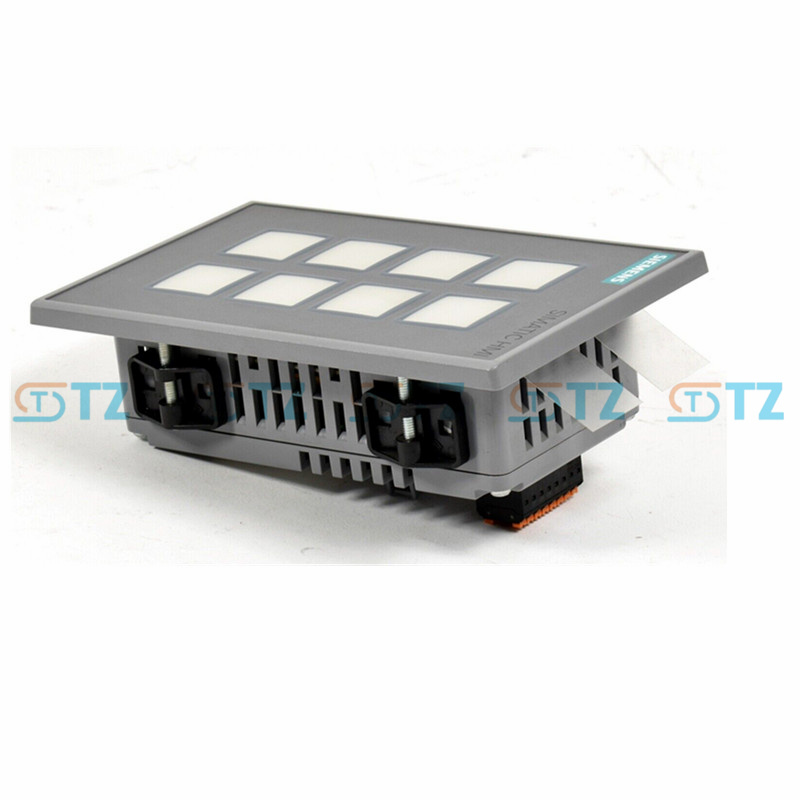

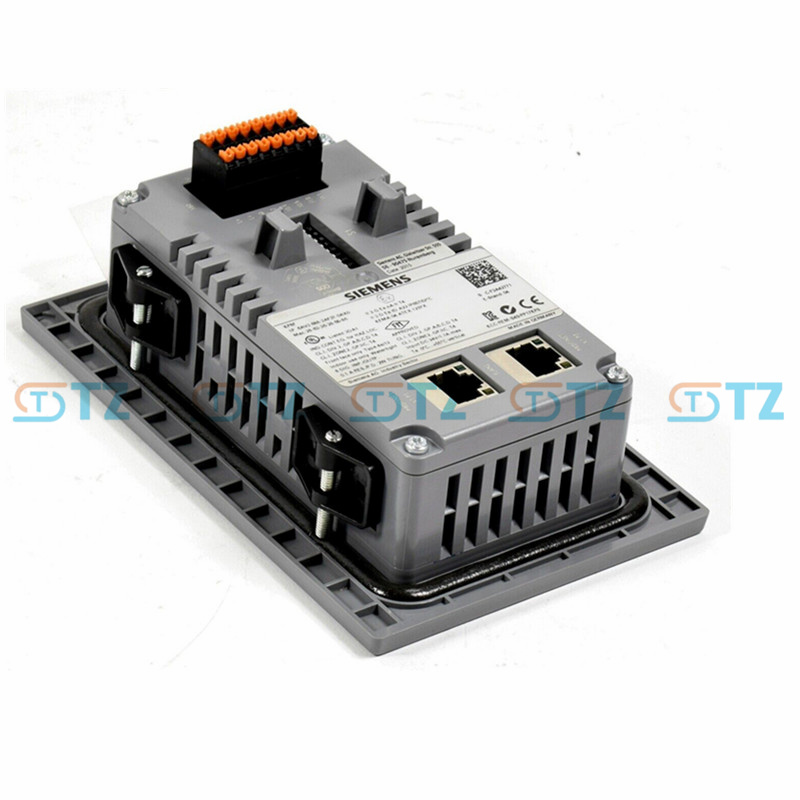

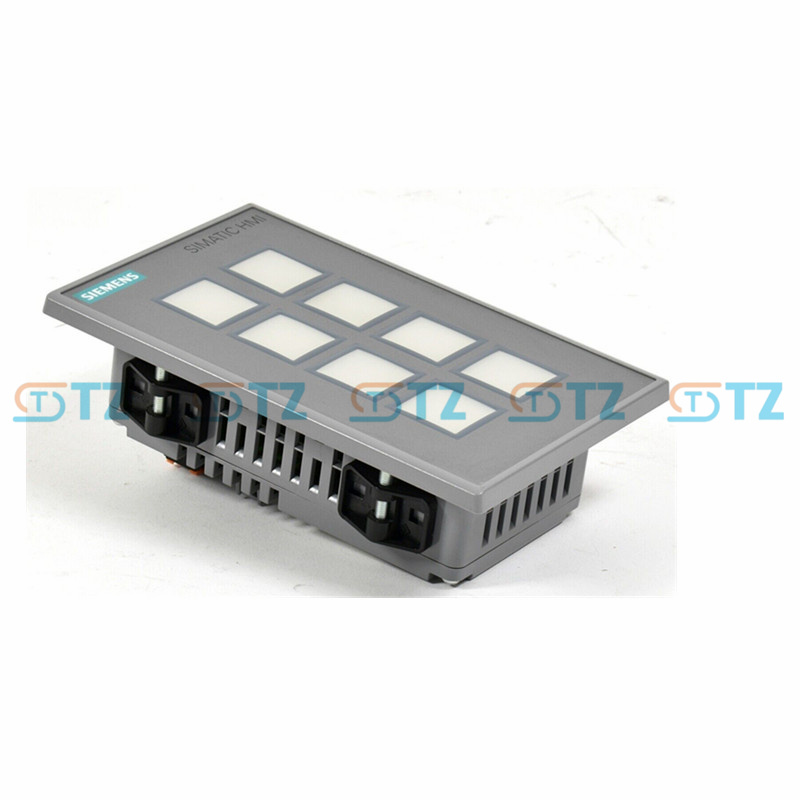

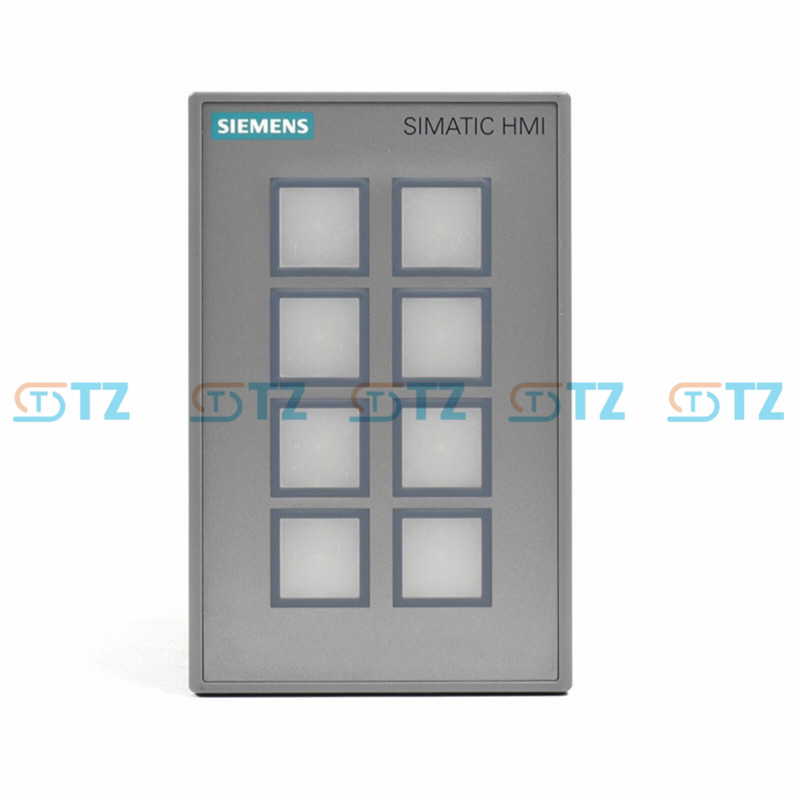

6AV3688-3AF37-0AX0 Siemens SIMATIC HMI KP8F PN Key Panel

6AV3688-3AF37-0AX0 Details:

Model and series:

Model: 6AV3688-3AF37-0AX0

Series: SIMATIC HMI

Type: KP8F PN Key Panel

Functions and Uses:

Man-machine interaction: As part of the SIMATIC HMI system, the KP8FPN key panel is used for the operation interface of the industrial control system to control and monitor the status of industrial equipment through the key.

Input control: Provides input control of industrial equipment, including starting/stopping machines, adjusting parameters, setting operating modes, etc.

Simple and efficient operating interface: provides operators with a simple and efficient way to control production lines or other industrial equipment, suitable for automated control systems with high operating interface requirements.

Real-time monitoring and alarm: Through the key panel, users can view the status of production equipment in real time, alarm processing or emergency shutdown operations.

Technical features:

PN (Profinet) support: The key panel supports Profinet (Industrial Ethernet Protocol) and enables data exchange and communication with PLC, HMI, SCADA systems and other devices over the network. This means that KP8F can be easily integrated into modern automation systems, enabling efficient, real-time data communication.

Rugged: The panel design is robust and can withstand high temperature, anti-vibration, anti-interference in industrial environments, and adapt to harsh working environments.

Multi-function keys: With multiple keys, can be configured according to the needs, the operator can quickly perform different operations through the keys.

Flexible configuration and scalability: Supports a variety of configurations and extensions to adapt to different industrial application scenarios.

Compatibility:

Compatibility with SIMATIC HMI systems: This device is part of the Siemens SIMATIC HMI (Human Machine Interface) system and can be used with other SIMATIC HMI devices such as touch panel, PC-based HMI, etc.

Support for Profinet communication: Support for Profinet protocol, compatible with Siemens PLC and other automation equipment that supports this protocol, ensuring fast data transfer and control between systems.

Installation and maintenance:

Installation method: KP8F PN key panel is usually mounted in the control cabinet or rack by panel mounting or DIN rail. The installation mode of the device can be adjusted according to the specific application scenario and installation environment.

Maintenance: Periodically check the function status of the key panel to ensure that the key is not faulty and the connection is stable. Avoid using corrosive liquids when cleaning to maintain the long-term stability of the equipment.

Application scenario:

Automated production lines: Suitable for production lines that require real-time monitoring and operational control, such as automated assembly lines, packaging lines, test benches, etc.

Machine equipment control: It can be used as an operation panel for starting, stopping, adjusting and parameter setting of a single machine equipment.

Field operation control: suitable for industrial control systems that require remote monitoring and control, especially field operation control systems that require high reliability.

Technical parameters:

Communication interface: Data transmission with other devices through Profinet interface to ensure real-time communication between devices.

Number and layout of keys: With multiple function keys, it can be customized to meet different operation requirements.

Operating temperature range: Usually adapt to the temperature changes in the industrial environment, the general operating temperature range between -20°C to +60°C, the specific need to refer to the Siemens product manual.

Anti-interference: The design has strong anti-electromagnetic interference ability, suitable for industrial field use.

Others:

Size and specifications: The size and specifications of the equipment will vary according to different application requirements. Please refer to the product documentation of Siemens for detailed parameters.

Protection level: Usually has a high level of protection, can prevent dust, moisture and other environmental factors, adapt to the harsh industrial environment.

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
