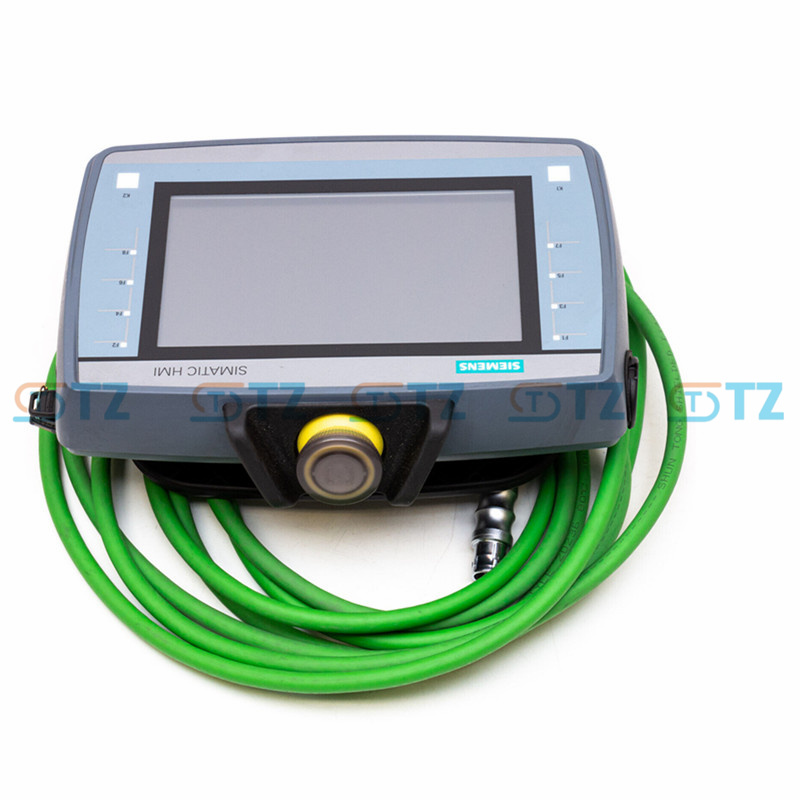

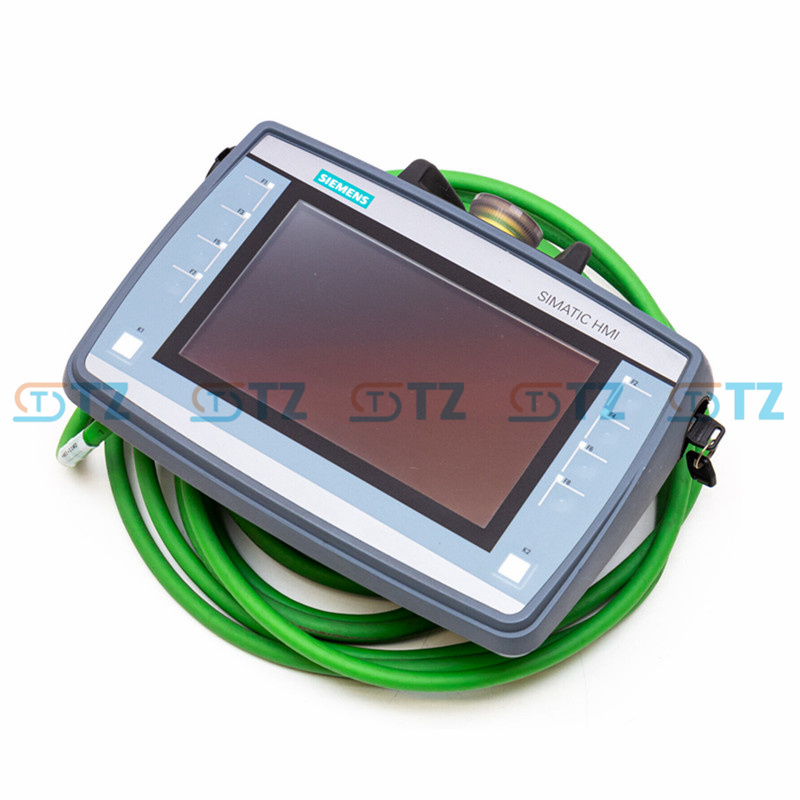

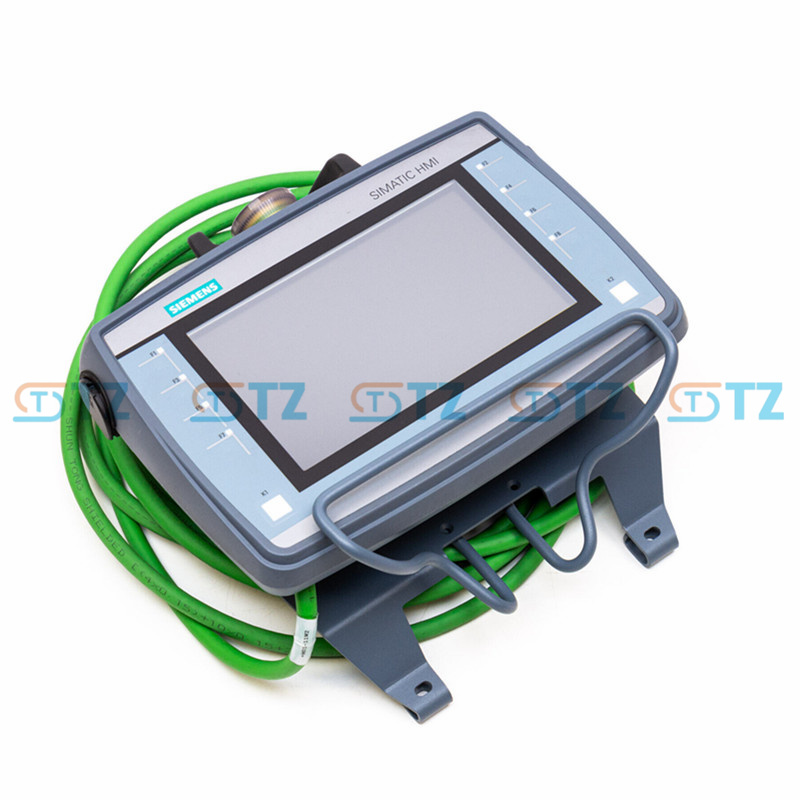

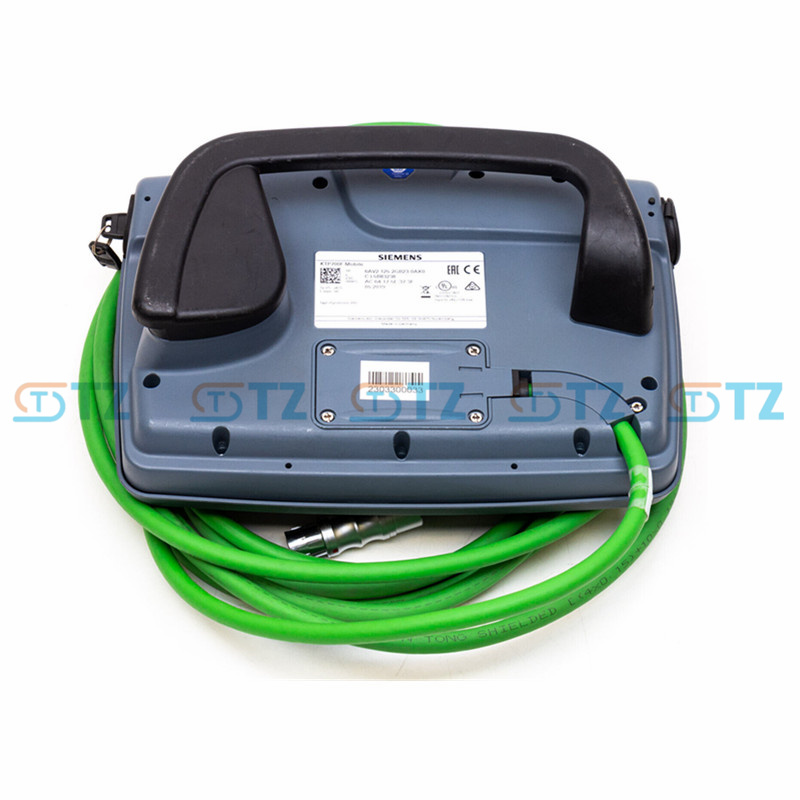

6AV2125-2GB23-0AX0 Siemens SIMATIC 7 Inch HMI KTP700F Mobile Panel

6AV2125-2GB23-0AX0 Details

Model and series

Model: 6AV2125-2GB23-0AX0

Series: SIMATIC HMI

Type: KTP700F Mobile Panel 7 Inch (7 inch touch screen mobile panel)

Function and use

Flexible remote operation: As a mobile panel, the KTP700F allows operators to move freely in industrial environments, providing convenient remote control and real-time monitoring.

Multifunctional display: The 7-inch touch screen clearly displays the control interface, production data, equipment status and alarm information to help the operator react quickly.

Monitoring and control: By connecting with Siemens PLC (e.g. S7-1200, S7-1500) and other equipment, the KTP700F enables remote operation, condition monitoring, data acquisition and fault diagnosis of the equipment.

Industrial environment adaptability: With IP65 protection grade, can adapt to a variety of harsh industrial environment, dust, water, strong shock resistance.

Technical characteristics

7-inch touch screen: provides a modest display area for applications where space is limited. Clear display interface, support graphics, data, alarm information display.

Resolution: 800 x 480 pixels, capable of displaying clear graphics and text.

Resistive touch screen: Durable and responsive for frequent operating environments.

Profinet communication: Supports Profinet protocol to ensure fast and stable connection with Siemens PLC and other equipment for data transmission and control operations.

Wireless communication: Support for Wi-Fi or other wireless connectivity options (depending on the configuration) for increased flexibility in remote operation.

High brightness display: Even in strong light, the display content can be clearly read, suitable for strong light working environment.

Rugged: IP65 protection grade, dust resistance, water resistance, can adapt to a variety of complex industrial environments.

Compatibility

Compatibility with Siemens PLC: Efficient connection with Siemens S7 series PLC (such as S7-1200, S7-1500, etc.) and other automation equipment that supports the Profinet protocol.

Compatibility with other Siemens equipment: In addition to PLCS, the KTP700F is compatible with Siemens drivers, sensors, actuators and other equipment for a wide range of automation control tasks.

Installation and maintenance

Easy installation: Support wall-mounted, equipment panel installation, etc., to adapt to a variety of industrial control environments.

Robust housing design: seismic and anti-jamming design ensures reliable operation in harsh environments.

Easy to operate and maintain: the interface is intuitive, simplifies the operation process, reduces the training cost of operators and the difficulty of troubleshooting.

Technical parameter

Display size: 7 inches

Resolution: 800 x 480 pixels

Touch screen type: resistive touch screen, high sensitivity

Communication protocol: Profinet, support efficient connection with automation equipment such as Siemens PLC

Protection grade: IP65, dustproof and waterproof, suitable for industrial environment

Operating temperature: Suitable for -20°C to +60°C working environment

Power requirement: 24V DC

Wireless communication options: Support for Wi-Fi or other wireless connection options (depending on configuration)

Advantages and characteristics

Moderate display size: The 7-inch touch screen provides enough display space for most industrial control scenarios, and the operation interface is clear and easy to read.

Flexible remote operation: The mobility of the KTP700F allows operators to move freely around the plant and production site, control and monitor equipment in real time, and improve work efficiency.

High protection level: The IP65 protection level ensures that the equipment can withstand dust, water vapor and other harsh environmental factors and adapt to complex industrial applications.

Efficient connectivity: Support for Profinet protocol ensures seamless connection with Siemens PLC and other automation equipment, providing reliable data transmission and equipment control.

Easy installation and operation: Flexible installation method, intuitive and easy to use interface, suitable for various industrial automation scenarios, reducing operator training costs.

Wireless connectivity: Wireless connectivity is supported, further improving the flexibility and convenience of operation.

Application scenario

Automated production line: for real-time monitoring and control of the production line, the operator can remotely adjust the production parameters, real-time feedback equipment status.

Device monitoring and fault diagnosis: Applicable to device status monitoring, fault alarm, and remote diagnosis, helping maintenance personnel quickly locate and solve problems.

Robot control: The ability to connect with the robot control system, remotely operate and monitor robots and other automation equipment.

Energy management: Displays energy usage data to help enterprises optimize energy management and reduce production costs.

Warehousing and logistics management: Suitable for warehousing control and logistics monitoring, providing real-time data updates and remote operation.
