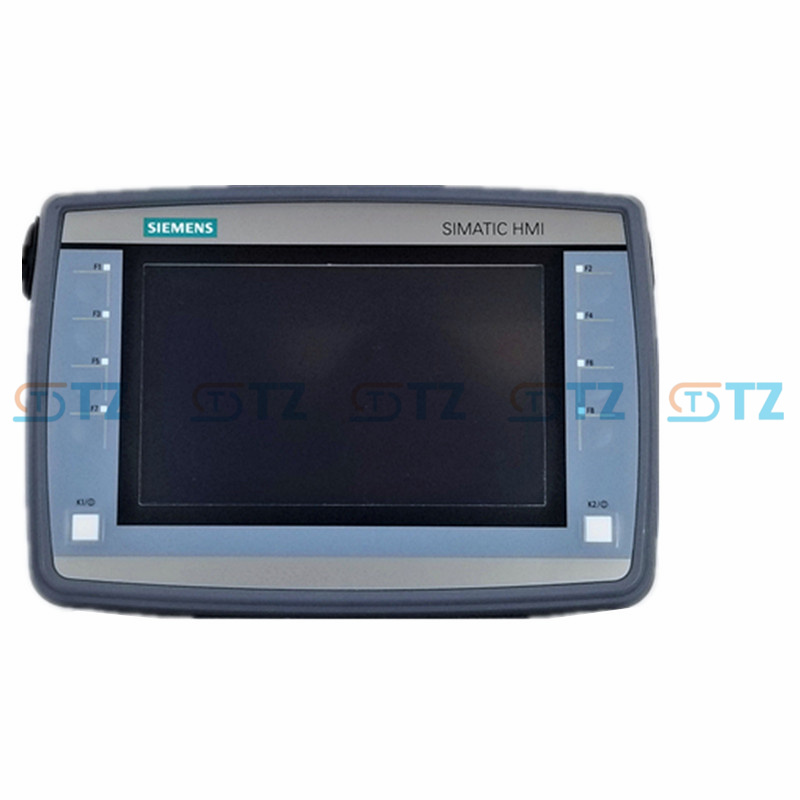

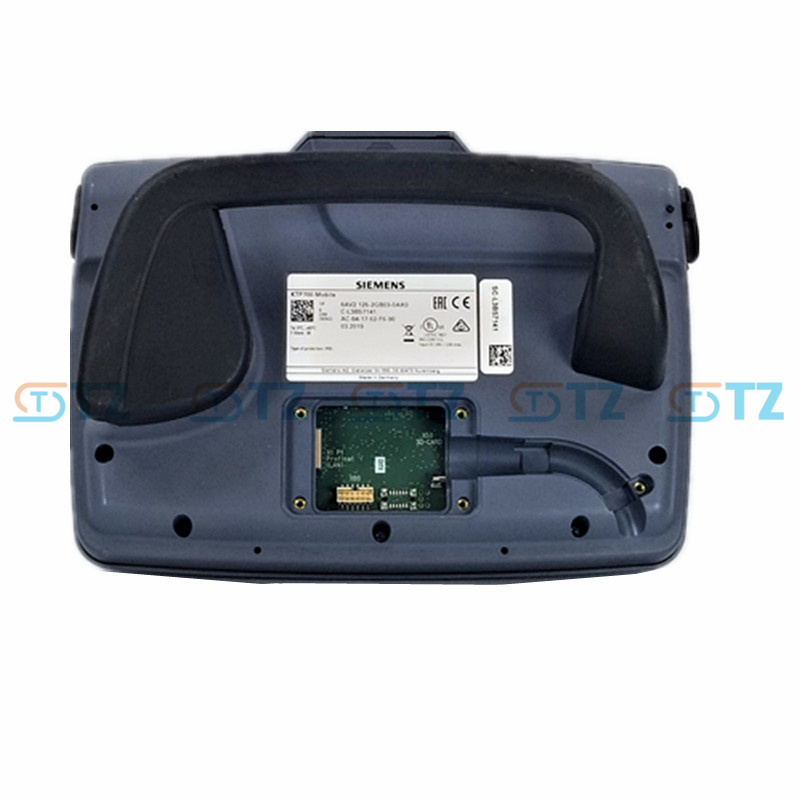

6AV2125-2GB03-0AX0 Siemens SIMATIC 7 Inch HMI KTP700 Mobile Panel

6AV2125-2GB03-0AX0 Details

Model and series

Model: 6AV2125-2GB03-0AX0

Series: SIMATIC HMI

Type: KTP700 Mobile Panel 7 Inch (7 inch touch screen mobile panel)

Function and use

Mobile operation: As a mobile panel, the KTP700 gives operators the flexibility to move around industrial environments, controlling and monitoring equipment and production processes in real time.

Multifunctional display: The 7-inch touch screen provides enough display space to display various equipment status, production data, graphics, alarm information, and more to help operators make quick decisions.

Data acquisition and remote monitoring: After connecting with Siemens PLC (such as S7-1200, S7-1500) and other equipment, equipment status monitoring, fault diagnosis, data collection and other operations can be carried out to ensure the smooth progress of the production process.

High protection level: The panel has IP65 protection level, which can effectively prevent the interference of dust, moisture and other external factors to ensure long-term stable work in harsh environments.

Technical characteristics

7 inch touch screen: with a clear display effect, suitable for operation interface display in industrial environments. The screen is responsive and provides a smooth operating experience.

Resolution: 800 x 480 pixels, providing enough display clarity to display device status, alarm information and various operating interfaces.

Resistive touch screens: Durable and reliable for high-frequency touch operations in industrial environments.

Profinet communication protocol: Through the Profinet protocol, the KTP700 panel can communicate with Siemens PLC system and other automation equipment at high speed, ensuring the reliability and real-time data transmission.

Wireless communication options: Support for wireless network connectivity increases the flexibility of remote operation, allowing operators to control equipment over a wider area.

High brightness display: Even under bright light, the display interface is still clear, ensuring that the operator can view information stably in a variety of environments.

Durable: IP65 protection grade, can effectively waterproof, dustproof, seismic, suitable for harsh industrial environment.

Compatibility

Compatible with Siemens PLC: Perfectly compatible with Siemens S7-1200, S7-1500 and other Profinet protocol supporting automation equipment, providing stable data connection and control.

Compatibility with other Siemens equipment: In addition to PLCS, the KTP700 can also be connected to Siemens drivers, sensors, actuators and other equipment to meet the needs of different automation tasks.

Installation and maintenance

Flexible installation: The KTP700 supports a variety of installation methods, such as equipment panels, control cabinets, walls, etc., which can be adapted to different industrial applications.

Anti-interference design: The equipment adopts a strong shell design, which has anti-interference and shock resistance, and can run stably in harsh environments for a long time.

Simple operation interface: With user-friendly graphical interface and touch operation, reduce the need for operator training and improve work efficiency.

Technical parameter

Display size: 7 inches

Resolution: 800 x 480 pixels

Touch screen type: resistive touch screen

Communication protocol: Profinet, support efficient connection with automation equipment such as Siemens PLC

Protection class: IP65, waterproof and dustproof

Operating temperature: Suitable for -20°C to +60°C environment

Power requirement: 24V DC

Wireless communication: Support for wireless connection options (depending on model and configuration)

Advantages and characteristics

High flexibility: As a mobile panel, the KTP700 offers great operational flexibility for industrial applications that require frequent movement and remote operation.

Clear display: The 7-inch touch screen has enough display area to clearly display the control interface, production data, alarm information, etc., to support more efficient operation.

High protection capability: The IP65 protection grade makes it adapt to the challenges of dust, moisture and other external factors in the industrial environment to ensure long-term stable use.

Efficient connection and communication: Support Profinet protocol to ensure efficient communication with Siemens PLC and other automation equipment to achieve real-time data exchange and control operations.

Rugged: Panel design meets industry standards, seismic, anti-interference, and can operate in harsh environments for a long time.

Wireless communication options: Wireless communication capabilities enhance the flexibility of mobile operations, allowing operators to control equipment over a wider area.

Application scenario

Automatic production line control: suitable for real-time monitoring and control on industrial production lines, operators can quickly adjust production parameters and monitor equipment status through panels in different positions.

Device monitoring and fault diagnosis: It can be used for device status monitoring, fault diagnosis, and remote maintenance to help technical personnel quickly locate and rectify faults.

Robot and manipulator control: Suitable for the control and monitoring of robots or manipulators, providing remote operation and real-time feedback.

Energy Management and monitoring: Real-time display of energy consumption data to help companies manage energy and optimize production processes.

Warehousing and logistics control: Suitable for warehousing and logistics management systems, providing equipment control and real-time data feedback to ensure smooth logistics operations.
