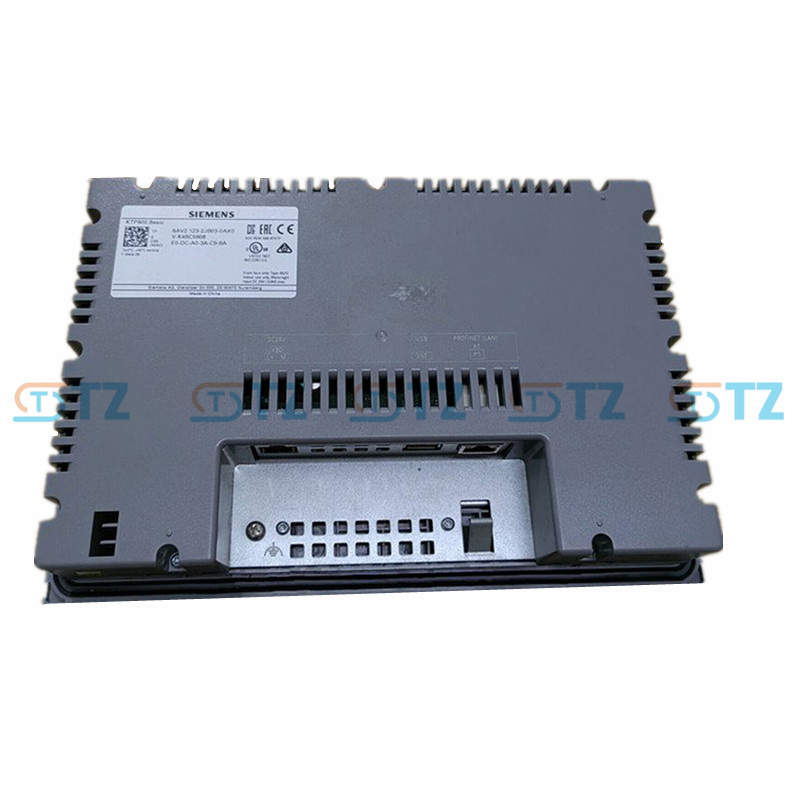

6AV2123-2JB03-0AX0 Siemens KTP900 Basic 9 Inch Touch Screen HMI

6AV2123-2JB03-0AX0 Details

Model and series

Model: 6AV2123-2JB03-0AX0

Series: SIMATIC HMI

Type: KTP900 Basic 9 Inch Touch Screen HMI (9 inch touch Screen HMI)

Function and use

Clear and intuitive display: The 9-inch touch screen can display clear text, graphics, production data and other information, suitable for applications requiring medium-complexity graphics display.

Equipment monitoring and control: The HMI can be connected to Siemens PLC, drives and other automation equipment to display real-time production data, equipment status and alarm information, and provide touch control.

Diagnosis and alarm: Built-in alarm function to alert operators of equipment failures or system problems, helping to reduce downtime and improve productivity.

Multi-language support: supports multiple language display, can meet the needs of globalization and multi-language environment.

Technical characteristics

9-inch touch screen: The 9-inch color touch screen is suitable for control tasks requiring a medium display area, ensuring clearer and more efficient presentation of information.

Resolution: usually 800x480 pixels, can clearly display text, numbers, symbols and simple graphics.

Touch screen Type: Resistive touch screen, suitable for high frequency operation in industrial environments, with high response sensitivity and strong durability.

Profinet communication: Support Profinet communication protocol, can be seamlessly connected with Siemens PLC and other automation equipment, to achieve data exchange and equipment control.

Industrial grade design: With IP65 protection grade, it can be used in harsh industrial environments, resist dust and water vapor, and ensure long-term stable operation.

Compatibility

Compatibility with Siemens PLC: Supports connection with Siemens PLC (such as S7-1200, S7-1500 series, etc.) and other automated control systems for fast data transmission and control.

Connectivity with other devices: In addition to connectivity with PLCS, the KTP900 HMI can also be integrated with industrial automation devices such as drives, robots, sensors, etc., for a variety of industrial control applications.

Installation and maintenance

Installation: Supports panel mounting for easy integration into standard control panels or devices, suitable for small to medium industrial applications.

Industrial-grade housing: Strong housing, with high anti-interference ability, can resist temperature difference, vibration, dust and other factors in industrial environment.

Easy operation and configuration: The HMI panel has a simple and intuitive operation interface and easy configuration process, reducing operator training costs.

Technical parameter

Display size: 9 inches for device control and monitoring applications that require a larger display area.

Resolution: 800 x 480 pixels, suitable for displaying simple to moderately complex graphics, data and control interfaces.

Touch screen type: Resistive touch screen with high durability and response sensitivity.

Interface type: Profinet interface to ensure seamless connection with Siemens automation systems and other equipment.

Operating temperature range: Suitable for -20°C to +60°C working environment, able to work stably in harsh industrial environments.

Protection level: IP65, dustproof, waterproof, to ensure reliable operation of equipment in various industrial environments.

Power requirements: 24V DC power supply, in line with industry standard voltage requirements.

Advantages and characteristics

Moderate size display: The 9-inch touch screen provides a larger display area than the 7-inch display, suitable for applications that need to display a moderate amount of information, such as production data, status indicators, trend charts, etc.

High resolution display: The resolution of 800x480 pixels can clearly display text, graphics, data and other content, ensuring that the operator can intuitively understand the information.

Strong durability: with IP65 protection grade, it can run stably in industrial environment for a long time, dustproof, waterproof, anti-interference, and adapt to various harsh working environments.

Flexible connectivity: Support Profinet communication, enabling rapid data exchange with Siemens PLC and other automation equipment to improve the overall efficiency of the system.

Easy operation: The resistive touch screen supports simple and fast touch operation, and the interface design is simple and easy to operate and configure, reducing the operator's learning curve.

Economical HMI: The KTP900 Basic provides a cost-effective solution for applications with moderate functional requirements, meeting performance requirements while controlling costs.

Application scenario

Medium production line monitoring: Suitable for medium production lines that require a large display area to display multiple equipment or production data, such as packaging lines, assembly lines, etc.

Machine and equipment control: suitable for monitoring and operation of machine and equipment, can display equipment status, production data, alarm information in real time.

Energy Management: In the energy consumption monitoring system, the KTP900 HMI displays energy usage in real time and provides control functions to help optimize energy management.

Automatic control system: suitable for automated control tasks, especially those requiring medium-complexity data and graphical display, such as industrial machinery control, conveyor system, etc.

Robot and equipment monitoring: It can be connected to industrial robots and other equipment to provide real-time data presentation and fault diagnosis to optimize production efficiency.

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
