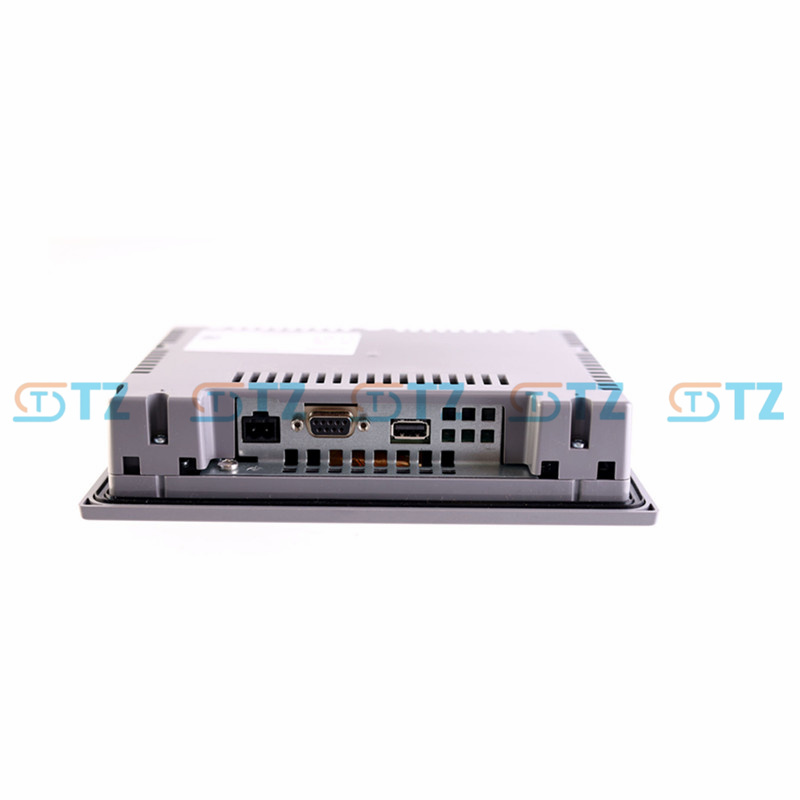

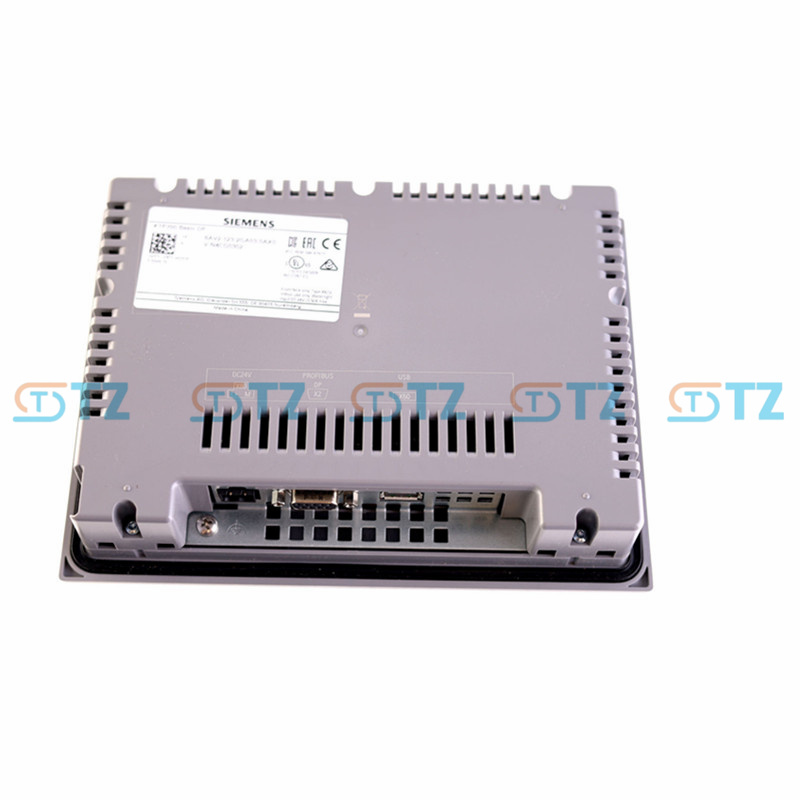

6AV2123-2GA03-0AX0 Siemens KTP700 Basic 7 Inch Touch Screen HMI

6AV2123-2GA03-0AX0 Details

Model and series

Model: 6AV2123-2GA03-0AX0

Series: SIMATIC HMI

Type: KTP700 Basic 7 Inch Touch Screen HMI (7 inch touch Screen HMI)

Function and use

Simple operation interface: provides a graphical interface that is easy to understand and operate, and is suitable for occasions where basic data display and device control are required.

Monitoring and Control function: This HMI can display equipment status, production data, alarm information in real time, and provide basic input and output functions to help operators control equipment.

Real-time diagnosis and alarm: Built-in alarm function and equipment status monitoring can report problems in the production line or equipment to the operator in a timely manner, helping to improve production efficiency and reduce downtime.

Support multi-language display: can switch different language interfaces according to the need to adapt to the use of different regions.

Technical characteristics

7-inch touch screen: Equipped with 7-inch color touch screen, suitable for displaying basic production data, graphics, text and alarm information, intuitive operation and rapid response.

Resolution: usually 800x480 pixels, to ensure clear display of text, numbers, ICONS and other information.

Touch screen type: Resistive touch screen, suitable for frequent operation in industrial environments, accurate touch response.

Profinet connection: Support Profinet communication protocol, can be connected with Siemens PLC and other automation equipment, to achieve data exchange and control operations.

Protection grade: IP65 protection grade, with dustproof, waterproof ability, suitable for harsh industrial environment.

Compatibility

Compatible with Siemens PLC: Supports the connection with Siemens S7-1200, S7-1500 series PLC and other automation equipment, using Profinet protocol to achieve efficient data communication and control operations.

Widely used: Suitable for various industrial automation applications, such as machine control, equipment monitoring, production process control, etc.

Installation and maintenance

Installation mode: Support panel installation, suitable for standard control panel or device panel installation, easy to deploy.

Robust industrial design: With high anti-interference capability, it can operate stably in industrial environments for a long time.

Simple operation: Easy configuration and operation, intuitive interface, help reduce operator training time.

Technical parameter

Display size: 7-inch touch screen, suitable for monitoring and operation of small devices or control panels.

Resolution: 800 x 480 pixels, suitable for displaying basic text, ICONS and graphics.

Interface type: Profinet, Ethernet and other communication interfaces to ensure seamless connection with PLC and other automation systems.

Operating temperature range: suitable for -20°C to +60°C working environment, able to operate stably in various industrial environments.

Protection grade: IP65, provide dust and water protection, adapt to harsh industrial environment.

Power requirements: 24V DC, in line with industry standard voltage requirements.

Advantages and characteristics

Compact design: 7-inch display for space-constrained device control or panel monitoring for easy integration into various industrial systems.

High resolution display: The 800x480 pixel resolution ensures a clear display, suitable for simple to moderately complex graphics and data presentation.

Touch operation: Resistive touch screen provides precise input experience, easy and intuitive operation, especially suitable for high frequency touch operation in industrial environments.

Powerful connectivity: Support Profinet communication, enabling efficient data exchange and control operations with Siemens PLC and other automation equipment.

Strong durability: IP65 protection grade, anti-interference, anti-dust and waterproof, able to operate stably in harsh industrial environments.

High cost performance: Suitable for applications with simple interface requirements, providing a good balance of performance and economy.

Application scenario

Machine control: Suitable for monitoring and operation of small or medium-sized machines and equipment, providing real-time data, status information and control interface.

Automatic production line: Used for automatic production line equipment control and monitoring, display production parameters, equipment status and alarm information.

Energy management systems: can monitor energy consumption data and provide real-time control and data feedback.

Industrial robot control: It can be integrated with industrial robots for equipment control, condition monitoring and diagnosis.

Facility monitoring: For real-time monitoring and control of equipment or the environment in a facility, such as HVAC systems, water treatment systems, etc.
